Moulding MAGNITUDE 7018

magnitude-1
Final Open copy
erosion-6
Brochure Finance Get Quote Layout

Key features and applications

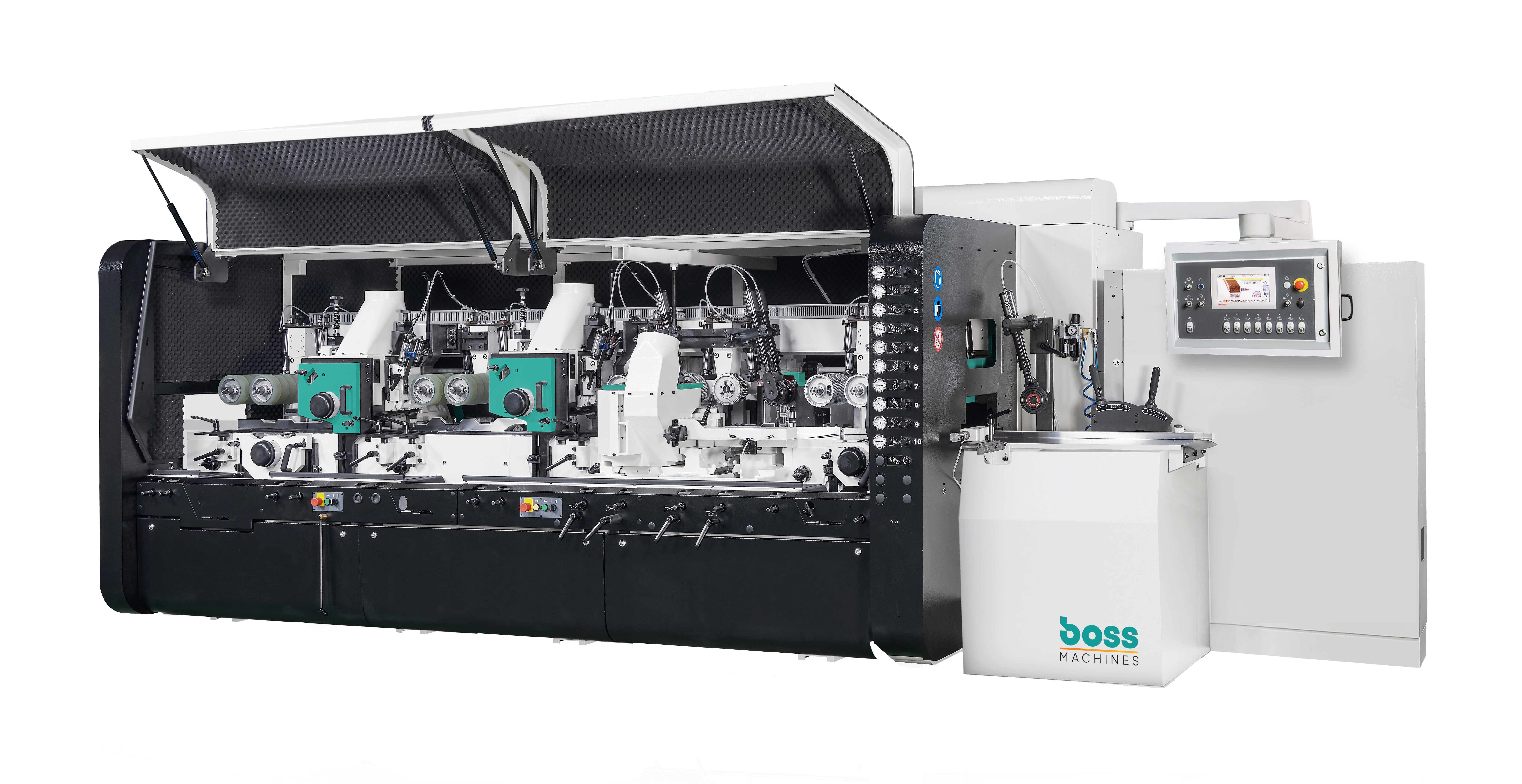

Engineered for high-production solid wood machining, the BOSS MAGNITUDE delivers exceptional moulding accuracy, superior finish quality, and fast, repeatable setups across a wide range of profiles and wood species. Featuring BOSS Lock HSK technology for secure, precise tooling changes and reduced setup time, the MAGNITUDE Rapid Setup 6 head moulder helps manufacturers increase productivity while maintaining consistent quality.

Built for demanding woodworking operations, the MAGNITUDE combines heavy-duty construction with advanced technology to minimize downtime and maximize production efficiency. Ideal for manufacturers producing architectural millwork, flooring, furniture components, mouldings, doors, windows, and other precision wood products, it delivers the accuracy, flexibility, and reliability required for today’s competitive market.

Designed for companies looking to increase throughput, improve product quality, and maximize return on investment—whether running custom orders or high-volume production.

YJF FC300 Certified Grey Cast Iron Frame

The Magnitude is built on an FC300 certified grey cast iron frame — the sam e grade used in precision machine tool manufacturing. Specifically formulated to absorb temperature fluctuation and maximize vibration dampening, this foundation delivers consistent, accurate mouldings pass after pass. The result is reduced wear on machine components, extended service life, and the dimensional reliability that high-volume production demands.
ChatGPT Image Jun 9, 2026, 02_08_35 PM

BOSS ULTRA-DRIVE Feeding WorksTM

The MAGNITUDE feed system features 11 driven top rollers and 5 driven bottom rollers powered by a heavy-duty Cardan shaft — no chains, no maintenance headaches. An infeed side pressure roller automatically positions variable-width stock against the fence before the first bottom spindle, ensuring consistent material control without operator intervention. Driven by an IE3 high-efficiency feed motor with inverter drive, this system feeds rough hardwood and softwood with authority at speeds up to 40m/min.
erosion-6

Servo Positioning + OPTITRONTM Operating System

The BOSS OPTITRONTM operating system pairs a 15” industrial touchscreen with a handheld remote for precise CNC spindle positioning, giving operators full machine control from anywhere on the floor. Programmable hot keys store frequently used setups for instant recall, while micro-adjustment capability allows experienced operators to compensate for tooling fatigue mid-run — without stopping production. Changeover downtime is one of the biggest profit leaks in any moulding opera- tion, and OPTITRON is engineered to close it.
magnitude-two-col-img

High-Performance BOSS LOCK HSK Spindles with 2+2 SKF Bearing Assembly

BOSS LOCK HSK high-performance spindles feature a 2+2 SKF bearing assembly, hardened 4140 tool steel, and dynamically balanced spindle and pulley for unrivaled finish quality and dimensional accuracy under continuous load. Backed by the BOSS Assurance 24-hour spindle exchange program, your investment stays protected and your production stays running.
magnitude-two-col

EZ-BOSSTM Quick Set Package

The EZ-BOSSTM Quick Set Package turns costly changeover time into a competitive advantage. Tool-free adjustments, integrated measurement scales, and visible positioning markers eliminate guesswork, while a quick-adjust fence after the right vertical spindle matches tool diameter changes in seconds — improving both setup speed and surface finish quality simultaneously.
brochure_MAGNITUDE 7018 copy JL

BOSS BODYGUARDTM Automatic Safety System

The patent-pending BOSS BODYGUARDTM Automatic Safety System removes operator compliance from the safety equation entirely. Tamper-proof pneumatic anti-kickback fingers deploy automatically and cannot be bypassed — eliminating liability exposure and ensuring safety mechanisms remain fully functional at full production speed.
brochure_MAGNITUDE 7018 copy JL-2
Layer 2
Watch setup video

Specifications

Specification
MAGNITUDE 7018
Max Working Width:
230mm (9 1/16")
Min Working Width:
10mm (3/4")
Minimum Thickness of Board:
10mm (1/4")
Max Working Thickness:
150mm (5 7/8")
Minimum Working Length:
900mm ( 351/2" )
Min Working Length (End to End):
300mm ( 12" )
Tool Cutting Circles (1st Bottom Spindle):
110 mm – 200 mm (4.92” – 7.87”)
Tool Cutting Circles (Vertical Spindles):
140–250 mm (5.51” – 9.84”)
Tool Cutting Circles (Horizontal Spindles):
140–250 mm (5.51” – 9.84”)
Adjustment Range (Vertical Spindles):
80 mm (3.14”)
Adjustment Range (Horizontal Spindles):
40 mm (1.57”)
Compressed Air Consumption:
7 bar (100psi), 0.3348 CFM
Machine Base:
Grey Cast Iron FC300 Certified
Infeed Table Surface:
chrome (0.3 mm thick)
Main Table Surface:
chrome (0.3 mm thick)
Sound Enclosure:
Premium sound enclosure
Machine Enclosure:
Light PLUS package
Voltage:
460 Volts | 60Hz | 3ph

Frequently Asked Questions

What is the BOSS MAGNITUDE 7018 designed for?

The BOSS MAGNITUDE 7018 is engineered for high-production solid wood machining and is designed to produce accurate mouldings with consistent finish quality across a wide range of profiles and wood species. It is suitable for architectural millwork, flooring, furniture components, mouldings, doors, windows, and other precision wood products.

How does the ULTRA-DRIVE Feeding Works™ system improve material handling?

The ULTRA-DRIVE Feeding Works™ system uses 11 driven top rollers and 5 driven bottom rollers powered by a heavy-duty Cardan shaft. An infeed side pressure roller automatically positions variable-width stock against the fence, providing consistent material control and feeding rough hardwood and softwood at speeds up to 40 m/min.

How does the EZ-BOSS™ Quick Set Package reduce setup time?

The EZ-BOSS™ Quick Set Package uses tool-free adjustments, integrated measurement scales, and visible positioning markers to simplify machine setup. A quick-adjust fence also accommodates tool diameter changes, helping reduce changeover time while maintaining surface finish quality.

How does the BOSS OPTITRON™ operating system improve machine setup?

The BOSS OPTITRON™ operating system combines a 15-inch industrial touchscreen with a handheld remote for precise CNC spindle positioning. Operators can save frequently used setups using programmable hot keys and make micro-adjustments during production, helping reduce changeover downtime.

What are the benefits of the BOSS LOCK HSK spindle system?

The BOSS LOCK HSK spindles use a 2+2 SKF bearing assembly, hardened 4140 tool steel, and dynamically balanced spindle and pulley components. This combination is designed to provide dimensional accuracy and consistent finish quality under continuous production loads.
