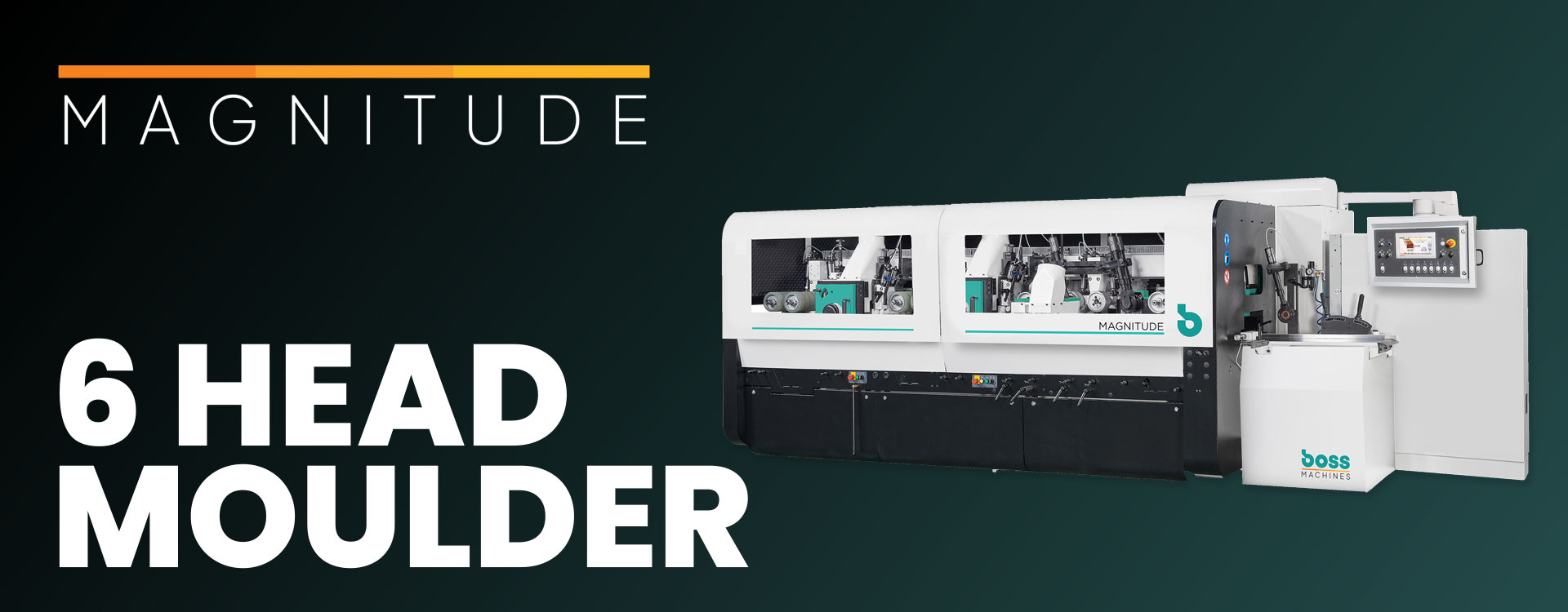

Moulding MAGNITUDE 9018

Layer 32
Scott_keeling_upscale_upscaled (5) (1)
ChatGPT Image Jun 9, 2026, 02_08_35 PM
Brochure Finance Get Quote Layout

Key features and applications

Engineered for high-production solid wood machining, the BOSS MAGNITUDE delivers exceptional moulding accuracy, superior finish quality, and fast, repeatable setups across a wide range of profiles and wood species. Featuring BOSS Lock HSK technology for secure, precise tooling changes and reduced setup time, the MAGNITUDE Rapid Setup 6 head moulder helps manufacturers increase productivity while maintaining consistent quality.

Built for demanding woodworking operations, the MAGNITUDE combines heavy-duty construction with advanced technology to minimize downtime and maximize production efficiency. Ideal for manufacturers producing architectural millwork, flooring, furniture components, mouldings, doors, windows, and other precision wood products, it delivers the accuracy, flexibility, and reliability required for today’s competitive market.

Designed for companies looking to increase throughput, improve product quality, and maximize return on investment—whether running custom orders or high-volume production.

YJF FC300 Certified Grey Cast Iron Frame

The Magnitude is built on an FC300 certified grey cast iron frame — the sam e grade used in precision machine tool manufacturing. Specifically formulated to absorb temperature fluctuation and maximize vibration dampening, this foundation delivers consistent, accurate mouldings pass after pass. The result is reduced wear on machine components, extended service life, and the dimensional reliability that high-volume production demands.
ChatGPT Image Jun 9, 2026, 02_08_35 PM

BOSS ULTRA-DRIVE Feeding WorksTM

The MAGNITUDE feed system features 11 driven top rollers and 5 driven bottom rollers powered by a heavy-duty Cardan shaft — no chains, no maintenance headaches. An infeed side pressure roller automatically positions variable-width stock against the fence before the first bottom spindle, ensuring consistent material control without operator intervention. Driven by an IE3 high-efficiency feed motor with inverter drive, this system feeds rough hardwood and softwood with authority at speeds up to 40m/min.
erosion-6

Servo Positioning + OPTITRONTM Operating System

The BOSS OPTITRONTM operating system pairs a 15” industrial touchscreen with a handheld remote for precise CNC spindle positioning, giving operators full machine control from anywhere on the floor. Programmable hot keys store frequently used setups for instant recall, while micro-adjustment capability allows experienced operators to compensate for tooling fatigue mid-run — without stopping production. Changeover downtime is one of the biggest profit leaks in any moulding opera- tion, and OPTITRON is engineered to close it.
magnitude-two-col-img

High-Performance BOSS LOCK HSK Spindles with 2+2 SKF Bearing Assembly

BOSS LOCK HSK high-performance spindles feature a 2+2 SKF bearing assembly, hardened 4140 tool steel, and dynamically balanced spindle and pulley for unrivaled finish quality and dimensional accuracy under continuous load. Backed by the BOSS Assurance 24-hour spindle exchange program, your investment stays protected and your production stays running.
magnitude-two-col

EZ-BOSSTM Quick Set Package

The EZ-BOSSTM Quick Set Package turns costly changeover time into a competitive advantage. Tool-free adjustments, integrated measurement scales, and visible positioning markers eliminate guesswork, while a quick-adjust fence after the right vertical spindle matches tool diameter changes in seconds — improving both setup speed and surface finish quality simultaneously.
brochure_MAGNITUDE 7018 copy JL

BOSS BODYGUARDTM Automatic Safety System

The patent-pending BOSS BODYGUARDTM Automatic Safety System removes operator compliance from the safety equation entirely. Tamper-proof pneumatic anti-kickback fingers deploy automatically and cannot be bypassed — eliminating liability exposure and ensuring safety mechanisms remain fully functional at full production speed.
brochure_MAGNITUDE 7018 copy JL-2
Layer 2
Watch setup video

Specifications

Specification
MAGNITUDE 9018
Max Working Width:
230mm
Min Working Width:
10mm
Minimum Thickness of Board:
10mm
Max Working Thickness:
150mm
Minimum Working Length:
900 mm (35 ½")
Min Working Length (End to End):
300 mm (12")
Tool Cutting Circles (1st Bottom Spindle):
110 mm – 200 mm (4.92” – 7.87”)
Tool Cutting Circles (Vertical Spindles):
140–250 mm (5.51” – 9.84”)
Tool Cutting Circles (Horizontal Spindles):
140–250 mm (5.51” – 9.84”)
Adjustment Range (Vertical Spindles):
80 mm (3.14”)
Adjustment Range (Horizontal Spindles):
40 mm (1.57”)
Compressed Air Consumption:
7 bar (100psi), 0.3348 CFM
Machine Base:
Grey Cast Iron FC300 Certified
Infeed Table Surface:
chrome (0.3 mm thick)
Main Table Surface:
chrome (0.3 mm thick)
Sound Enclosure:
Premium sound enclosure
Machine Enclosure:
Light PLUS package
Voltage:
460 Volts | 60hz | 3ph

Shop Parts & Supply
for the Magnitude 9018 Moulder

faba-hsk-cutterhead-lh-100mm-length-2-wing-15-degree-hook-90mm-dia-bottom-left-head

FABA HSK Cutterhead LH - 100mm Length, 2 Wing, 15 Degree Hook, 90mm Dia Bottom/Left Head
CAD$990.00
ADD TO CART
faba-hsk-cutterhead-lh-60mm-length-4-wing-15-degree-hook-90mm-dia-bottom-left-head

FABA HSK Cutterhead LH - 100mm Length, 4 Wing, 15 Degree Hook, 90mm Dia Bottom/Left Head
CAD$1,450.00
ADD TO CART
faba-hsk-cutterhead-lh-100mm-length-2-wing-15-degree-hook-90mm-dia-bottom-left-head

FABA HSK Cutterhead LH - 150mm Length, 2 Wing, 15 Degree Hook, 90mm Dia Bottom/Left Head
CAD$1,170.00
ADD TO CART
faba-hsk-cutterhead-lh-60mm-length-4-wing-15-degree-hook-90mm-dia-bottom-left-head

FABA HSK Cutterhead LH - 150mm Length, 4 Wing, 15 Degree Hook, 90mm Dia Bottom/Left Head
CAD$1,775.00
ADD TO CART
faba-hsk-cutterhead-rh-230mm-length-2-wing-15-degree-hook-90mm-dia-top-head

FABA HSK Cutterhead LH - 230mm Length, 2 Wing, 15 Degree Hook, 90mm Dia Bottom Head
CAD$1,495.00
ADD TO CART
faba-hsk-cutterhead-lh-60mm-length-4-wing-15-degree-hook-90mm-dia-bottom-left-head

FABA HSK Cutterhead LH - 230mm Length, 4 Wing, 15 Degree Hook, 90mm Dia Bottom Head
CAD$2,200.00
ADD TO CART
faba-hsk-cutterhead-lh-100mm-length-2-wing-15-degree-hook-90mm-dia-bottom-left-head

FABA HSK Cutterhead LH - 100mm Length, 2 Wing, 15 Degree Hook, 90mm Dia Bottom/Left Head
CAD$990.00
ADD TO CART
faba-hsk-cutterhead-lh-60mm-length-4-wing-15-degree-hook-90mm-dia-bottom-left-head

FABA HSK Cutterhead LH - 100mm Length, 4 Wing, 15 Degree Hook, 90mm Dia Bottom/Left Head
CAD$1,450.00
ADD TO CART
faba-hsk-cutterhead-lh-100mm-length-2-wing-15-degree-hook-90mm-dia-bottom-left-head

FABA HSK Cutterhead LH - 150mm Length, 2 Wing, 15 Degree Hook, 90mm Dia Bottom/Left Head
CAD$1,170.00
ADD TO CART
faba-hsk-cutterhead-lh-60mm-length-4-wing-15-degree-hook-90mm-dia-bottom-left-head

FABA HSK Cutterhead LH - 150mm Length, 4 Wing, 15 Degree Hook, 90mm Dia Bottom/Left Head
CAD$1,775.00
ADD TO CART
faba-hsk-cutterhead-rh-230mm-length-2-wing-15-degree-hook-90mm-dia-top-head

FABA HSK Cutterhead LH - 230mm Length, 2 Wing, 15 Degree Hook, 90mm Dia Bottom Head
CAD$1,495.00
ADD TO CART
faba-hsk-cutterhead-lh-60mm-length-4-wing-15-degree-hook-90mm-dia-bottom-left-head

FABA HSK Cutterhead LH - 230mm Length, 4 Wing, 15 Degree Hook, 90mm Dia Bottom Head
CAD$2,200.00
ADD TO CART
Load More

Frequently Asked Questions

What is the BOSS MAGNITUDE 9018 designed for?

The BOSS MAGNITUDE 9018 is engineered for high-production solid wood machining, delivering accurate moulding, consistent finish quality, and fast, repeatable setups across a wide range of profiles and wood species. It is suitable for architectural millwork, flooring, furniture components, mouldings, doors, windows, and other precision wood products.

How does the OPTITRON™ Operating System reduce setup time?

The BOSS OPTITRON™ system combines a 15-inch industrial touchscreen with a handheld remote for precise CNC spindle positioning. Operators can save frequently used setups for quick recall and make micro-adjustments during production without stopping the machine, helping reduce changeover downtime.

How does the EZ-BOSS™ Quick Set Package improve machine setup?

The EZ-BOSS™ Quick Set Package provides tool-free adjustments, integrated measurement scales, and visible positioning markers to simplify setup. Its quick-adjust fence can accommodate tool diameter changes in seconds, helping improve setup speed and maintain surface finish quality.

How does the BOSS ULTRA-DRIVE Feeding Works™ system improve material handling?

The ULTRA-DRIVE Feeding Works™ system uses 11 driven top rollers and 5 driven bottom rollers powered by a heavy-duty Cardan shaft. An infeed side pressure roller automatically positions variable-width stock against the fence, providing consistent material control and feeding rough hardwood and softwood at speeds up to 40 m/min.

What are the benefits of the BOSS LOCK HSK spindle system?

The BOSS LOCK HSK spindles feature a 2+2 SKF bearing assembly, hardened 4140 tool steel, and dynamically balanced spindle and pulley components. These features are designed to provide high finish quality and dimensional accuracy during continuous production. The system is also backed by the BOSS Assurance 24-hour spindle exchange program.
