Planing Timber Ox

Layer 37
Timberox2
Brochure Finance Get Quote Layout

Key features and applications

Built for high-production environments, capable of feed speeds up to 98 FPM with a rigid cast iron frame and industrial cardan shaft drive system for consistent, day-to-day performance. Large diameter spiral cutterheads with two-sided solid carbide inserts deliver aggressive stock removal while maintaining a clean, high-quality finish.

A spring-loaded pin feed system carries material smoothly over the bottom head, while an adjustable infeed bed allows precise control of material removal. Final thickness is set through a digital control, with the top head and feed assembly automatically positioning for fast, accurate setup and repeatable production results. Seven bottom rollers, including three powered rollers, provide strong material support and positive feeding—ensuring stable throughput and consistent tracking, even with heavy, wide, or rough lumber.

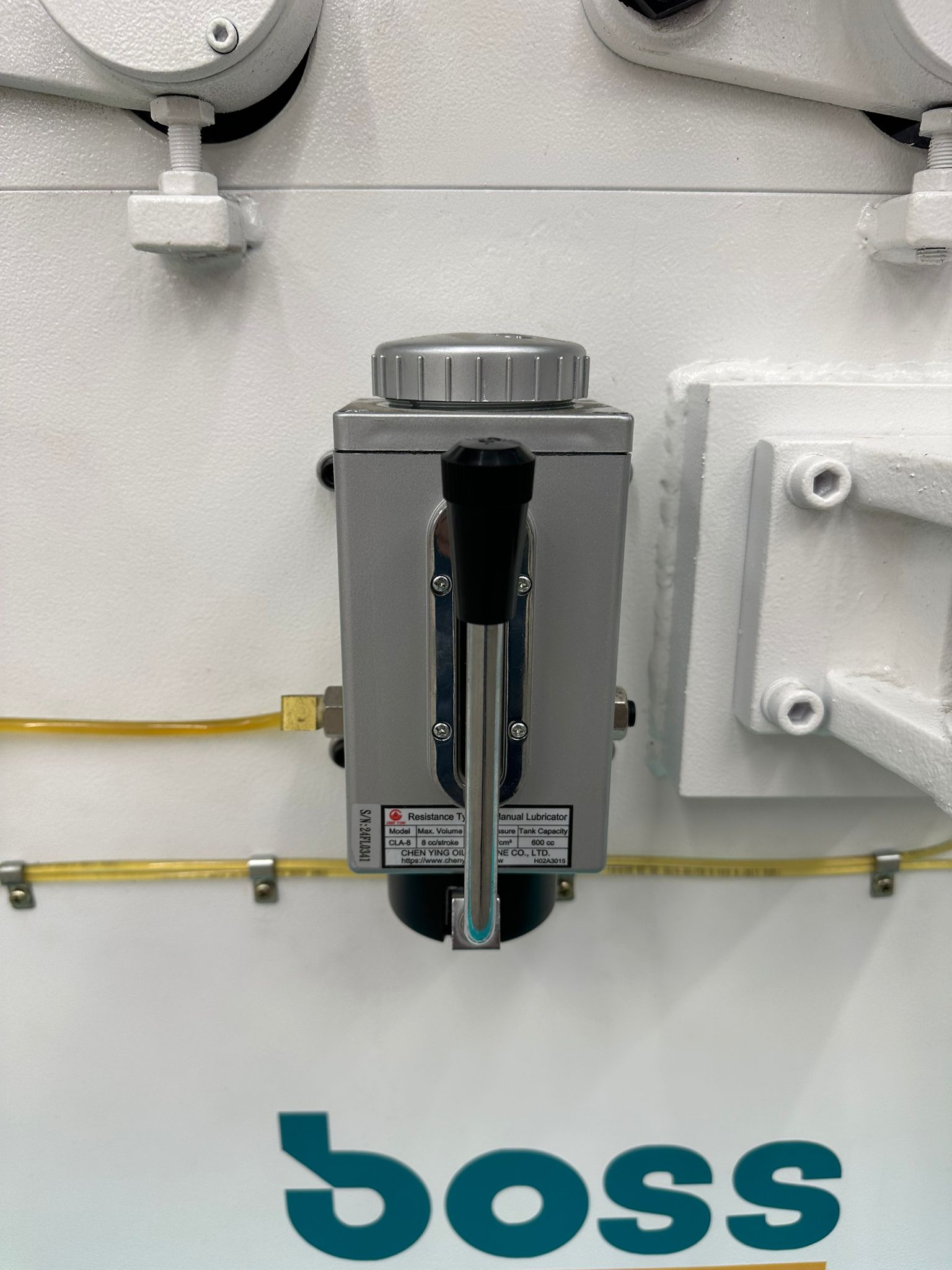

Central greasing system

The central greasing system provides consistent lubrication to key machine points, reducing friction and wear while extending component life. It minimizes manual maintenance requirements and helps ensure reliable, uninterrupted operation in continuous production environments.
WhatsApp Image 2026-06-22 at 16.09.24 (8)

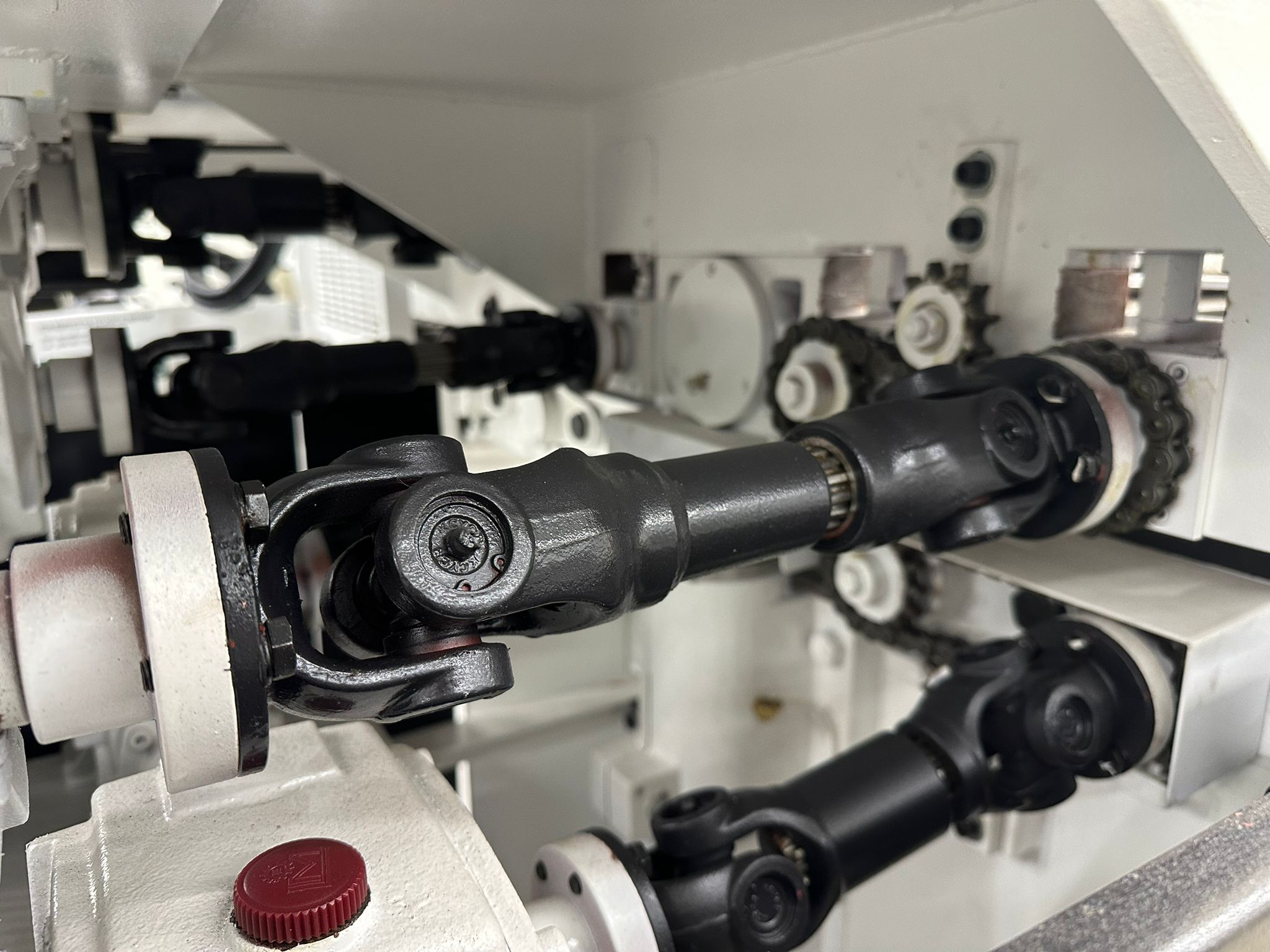

Heavy-duty full cardan shaft assembly

This assembly delivers a rigid, high-efficiency power transmission system designed for continuous industrial operation. By mechanically linking all feed rollers through a precision-balanced drive system, it ensures perfectly synchronized material movement across the entire bed. This eliminates slippage, improves feed consistency, and maintains stable performance even at high feed speeds and under heavy loads. The cardan shaft system enhances overall reliability, reduces wear on drive components, and supports smooth, controlled feeding.
WhatsApp Image 2026-06-22 at 16.09.23 (1)

Schneider Electrical Components

Equipped with Schneider electrical components for dependable control, enhanced safety, and long-term operational reliability in demanding production environments. These industry-grade systems ensure consistent machine performance, simplified troubleshooting, and improved serviceability, helping minimize downtime and support continuous production.

bbfb63e6d24b2ba6.jpg_20221026142834_800x800

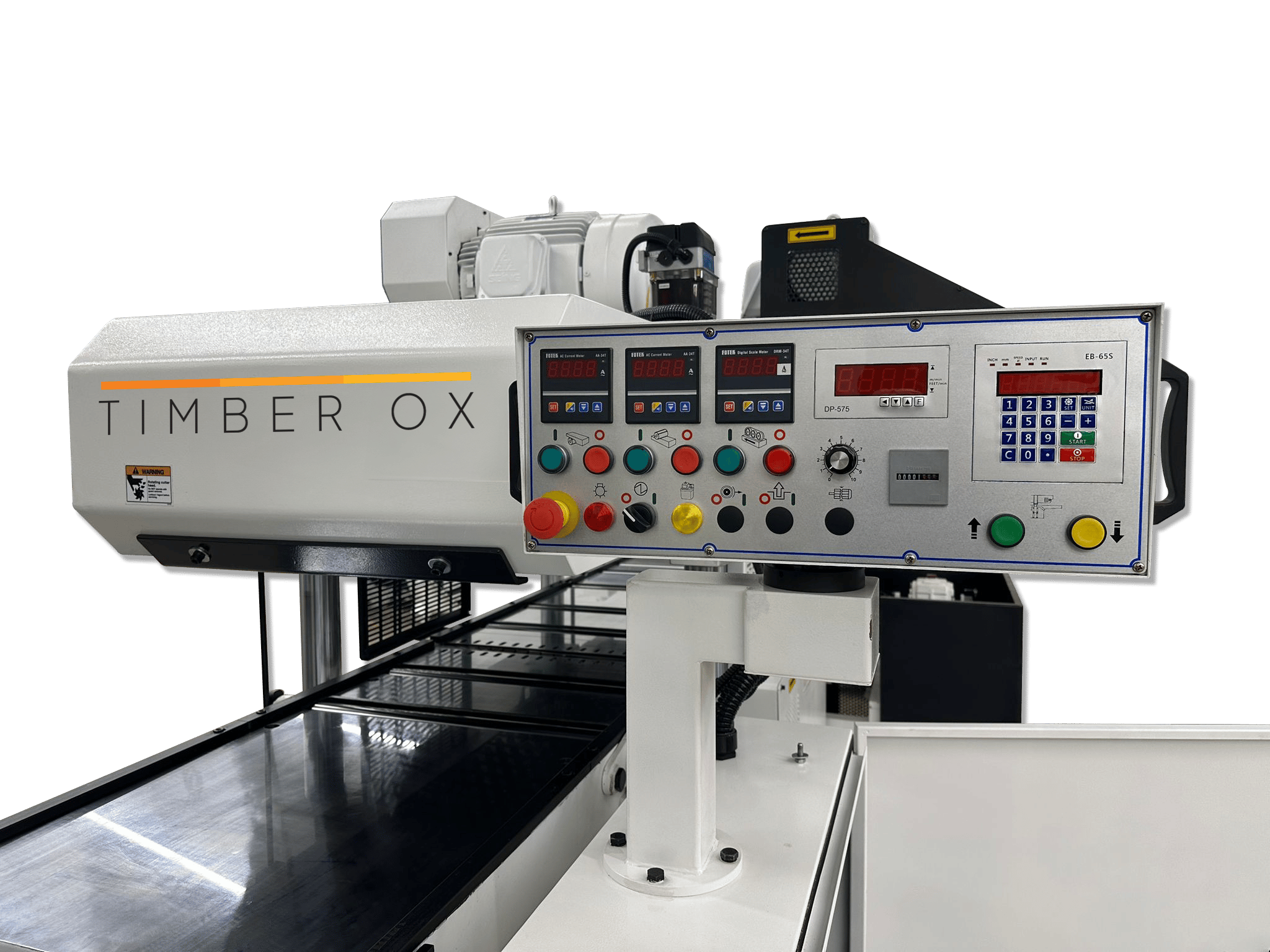

VFD drive & electronic controls for simplified precision setup

Production efficiency is enhanced through a VFD-controlled variable feed speed with digital display, alongside digital thickness control for fast, precise setup. Operational monitoring is simplified with a swivel control panel featuring individual ammeters and an hour meter for maintenance planning. Y-Delta starter configuration provides soft start-up for reduced power demand
timberox1

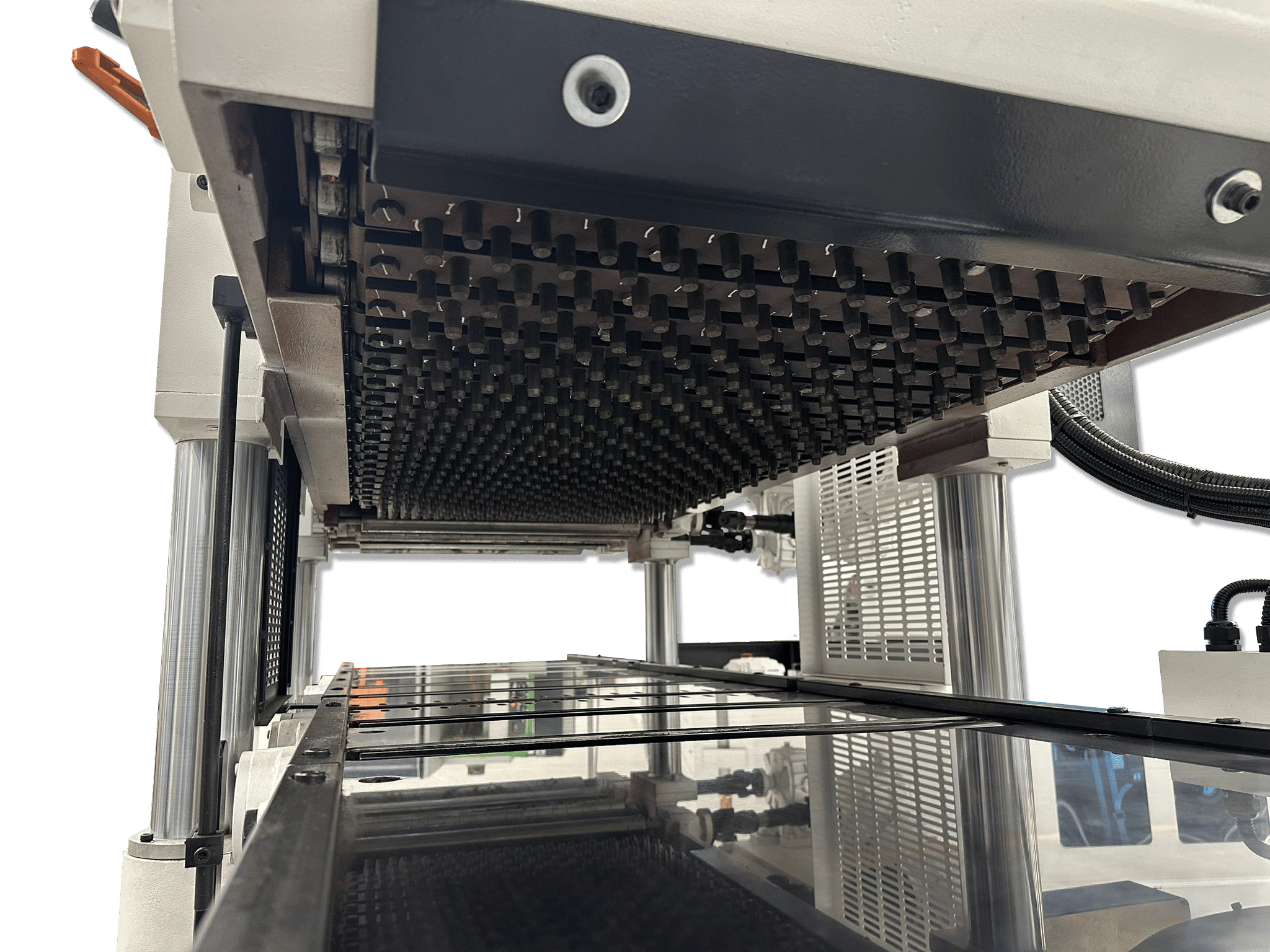

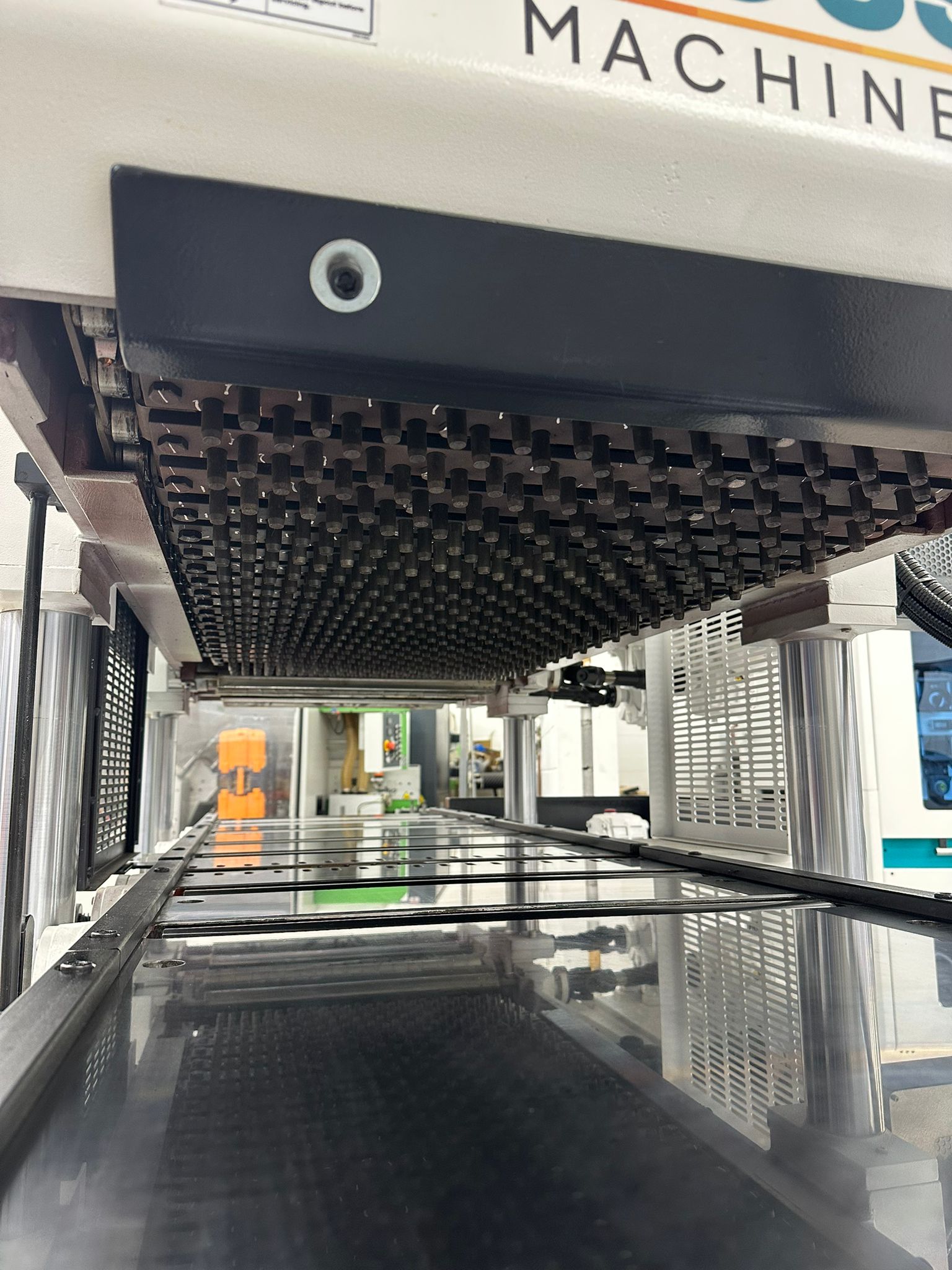

Powerful feed system

Heavy-duty feed system engineered for continuous production, delivering consistent and reliable material movement through the planer at high feed speeds. A spring-loaded pin (pin-type carpet) feed system carries material smoothly over the bottom head, ensuring stable support and a consistently flat reference surface throughout the cut. This design improves control on rough, wide, or heavy stock while maintaining steady feed pressure and accurate processing.
WhatsApp Image 2026-06-22 at 16.09.24 (5)

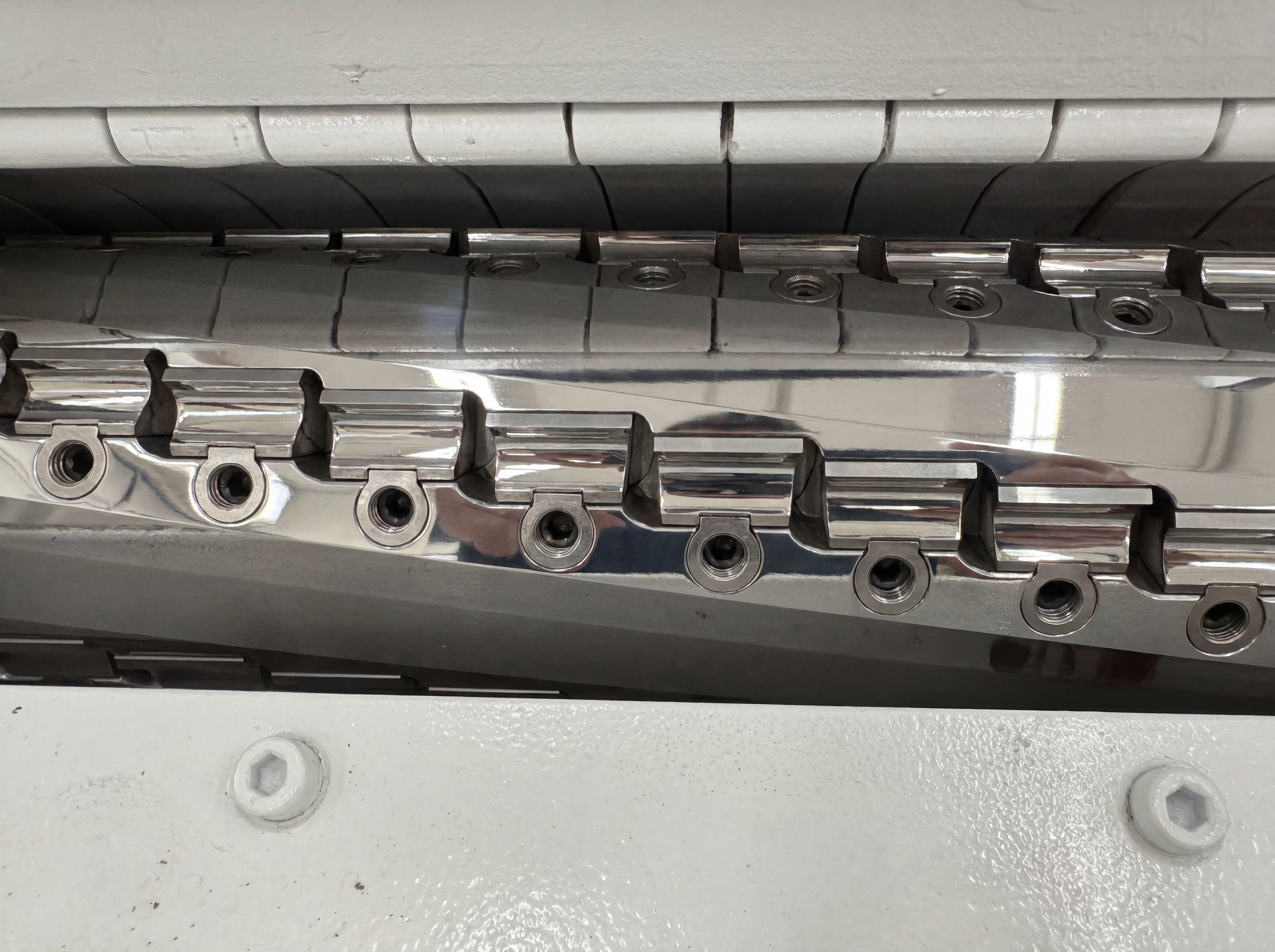

Double-sided solid carbide inserts

30 × 12 × 2.5 mm reversible inserts designed for long-lasting performance, precision cutting, and reduced downtime. Featuring two usable cutting edges, these inserts maximize tool life while maintaining consistent cutting quality and surface finish. Ideal for planer heads and high-production woodworking applications requiring durability, accuracy, and reliable performance.
ddddddd_edit-3 (1)

Specifications

Specification
Timber Ox
Max Working Width:
610mm
Minimum Thickness of Board:
0.472"
Max Working Thickness:
14"
Minimum Working Length:
11.8"
Cutterhead RPM:
4,600 RPM
Cutterhead Diameter:
5.3"
Cutterhead Inserts:
30*12*2.5mm105 pc per head (*2)
Top Cutterhead Motor:
40HP
Bottom Cutterhead Motor:
30HP
Table Rolls:
7 (3) driven
Feeding Speed:
30-98 FPM
Feeding Motor:
5HP
Opening Hoist Motor:
1HP
Dust Outlet Diameter / Ports:
(2) 6" = 3500 CFM
Electrics / Voltage:
460/3/60= 110 amps
Overall Machine Dimensions:
112"x67"x67"
Machine Weight:
9,260 Ibs
Shipping Dimensions (LxWxH):
116" * 75" * 79"
Shipping Weight:
9,700 lbs

Shop Parts & Supply
for the Magnitude 9018 Moulder

timberox-img

Boss Replacement Insert Knives for 1300 Planer 30mm x 12mm x 2.5mm
CAD$11.20
ADD TO CART
timberox-img

Boss Replacement Insert Knives for 1300 Planer 30mm x 12mm x 2.5mm
CAD$11.20
ADD TO CART

Frequently Asked Questions

What is the TIMBER OX planer designed to process?

The TIMBER OX is built to process both rough lumber and heavy timber, including hardwoods, softwoods, glulam beams, and mass timber components.

How does the feed system improve performance?

The heavy-duty Cardan shaft drive and spring-loaded pin feed system provide stable, synchronized material movement for accurate, consistent planing at high feed speeds.

Why are double-sided carbide inserts beneficial?

The reversible solid carbide inserts provide two cutting edges, extending tool life, reducing replacement costs, and maintaining consistent surface quality throughout production.

The TIMBER OX is built to process both rough lumber and heavy timber, including hardwoods, softwoods, glulam beams, and mass timber components.

The machine can process material up to 24 inches wide and 14 inches thick while also supporting precision planing of much thinner stock.

What maintenance features are included?

The TIMBER OX includes a centralized greasing system, industrial electrical components, and durable carbide inserts that reduce maintenance requirements and minimize downtime.
