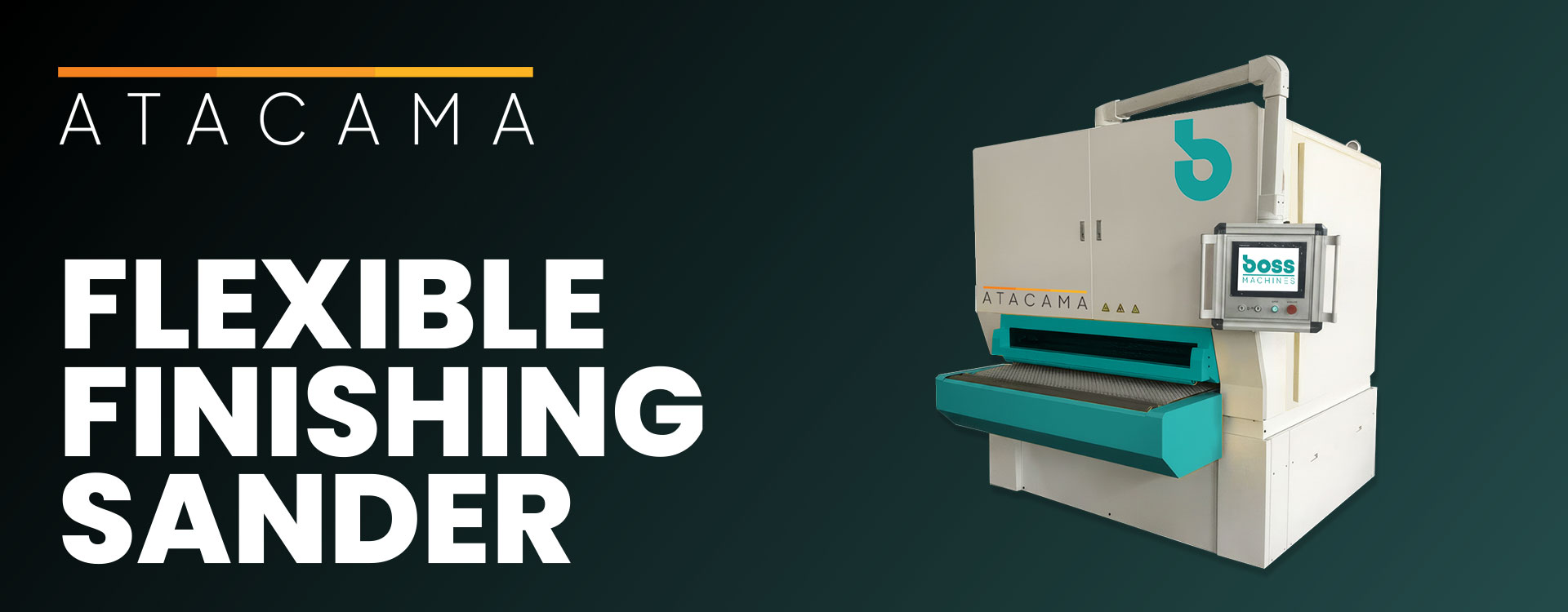

Sanding and Texturizing ATACAMA 2H
Your go to for veneer and sealer sanding
Engineered for precision veneer and decorative panel sanding, the BOSS ATACAMA delivers consistently smooth, high-quality finishes across a wide range of panel materials.
The BOSS ATACAMA features a fixed working table with floating sanding units, maintaining a constant pass line for seamless integration into production environments. This design provides consistent sanding depth, dependable material handling and a uniform, high-quality finish.
A precision pneumatic sanding pad applies controlled, even pressure across the panel surface while adapting to minor variations in material thickness. This helps prevent over-sanding and veneer breakthrough, protects delicate surfaces and delivers consistent results on veneers and decorative panels.
Supercharged consistency with with the Delta AS300
Engineered for precision and speed, this high-performance controller takes the guesswork out of industrial woodworking finishing. Its ultra-fast 32-bit SoC processor delivers flawless, real-time control over the conveyor feed, cross rollers, disc rotation, and longitudinal brush oscillation.

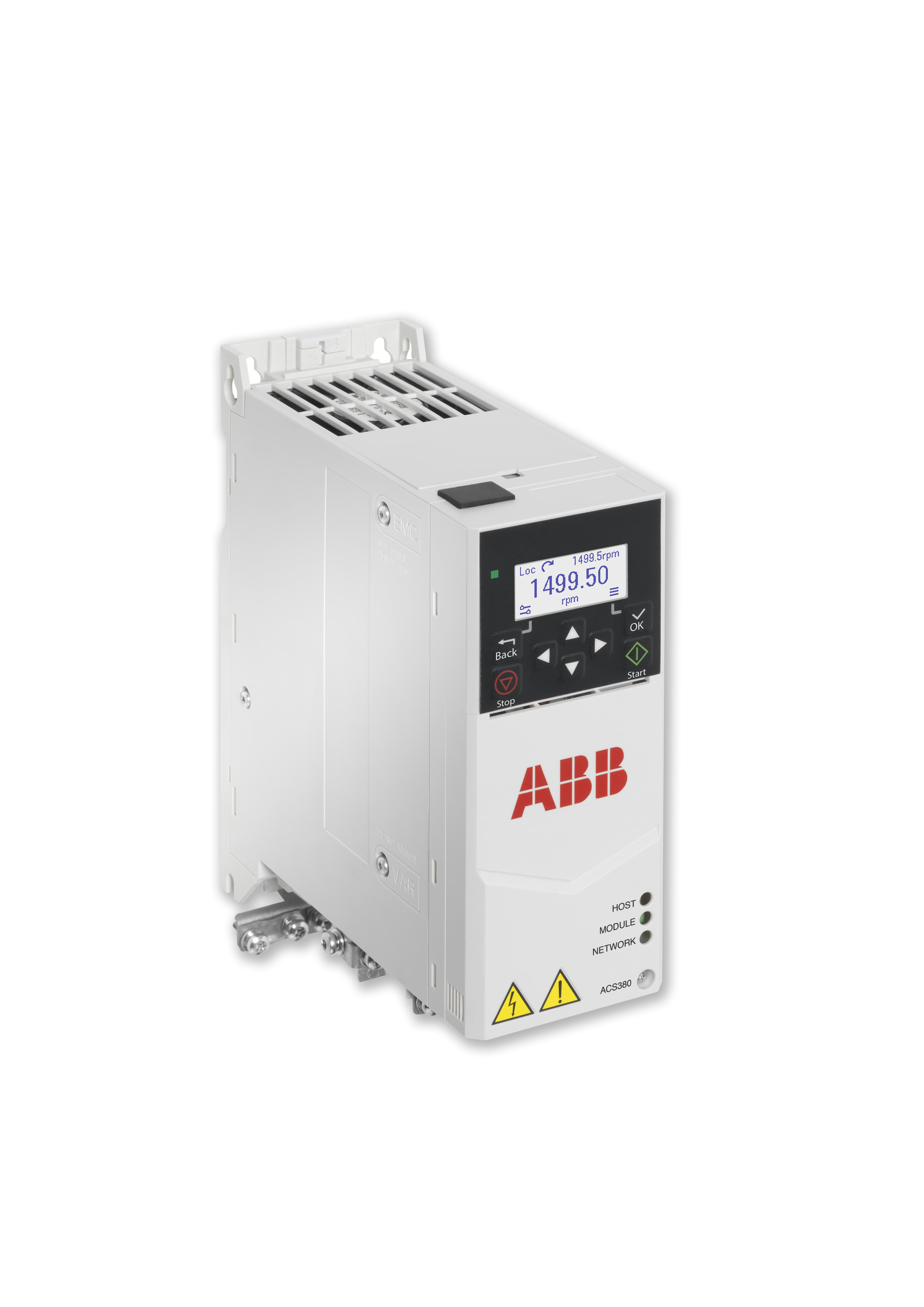

Independent ABB Variable-Speed Drive Control
The BOSS ATACAMA is equipped with dedicated ABB variable-frequency drives, providing independent and precise speed control of key sanding and materialhandling functions. Operators can optimize belt and feed speeds for different panel materials, veneer thicknesses and finish requirements. Controlled acceleration and deceleration reduce mechanical stress,while consistent motor performance supports smoother operation, repeatable sanding results and improved energy efficiency.
POWER THAT DRIVES PRECISION
Equipped with a high-quality gearbox and inverter motor, The Erosion line of Brushsanders deliver smooth, powerful, and ultra-precise performance under continuous industrial workloads. Reduced vibration, optimized speed control, and long-term reliability ensure maximum productivity and consistent results every shift.
Rotary Air Jet Cleaning System
High-velocity rotary air blowers remove residual sanding dust from the workpiece surface before it exits the machine, ensuring a cleaner panel, reducing contamination in downstream finishing processes, and helping deliver a superior final finish.
GripMax™ Conveyor Technology
A high-friction industrial conveyor belt system that securely controls workpieces through the sanding zone, reducing slippage, improving finish consistency, and providing exceptional belt longevity in multi-shift production environments.
Integrated anti-dubbing
This optical technology detects the leading and trailing edges of each panel, precisely controlling sanding contact to reduce edge rounding and minimize the risk of sanding through sensitive veneer surfaces.
Specifications
Specification
ATACAMA 2H
Max Working Width:
1350 mm(53")
Min Working Width:
40mm(1.6")
Minimum Thickness of Board:
2.5mm(0.01")
Max Working Thickness:
120mm(3.9")
Minimum Working Length:
490 mm(19.3")
Working Table Height:
900mm(35.4")
First Roller Diameter:
320 mm / Shore 55
Second Roller Diameter:
180 mm / Shore 45
Cross Belt Size:
150 × 5000 mm(5.9" × 197")
Longitudinal Belt Size:
1370 × 2743 mm(54" × 108")
Polishing Roller Grit:
#1200, #1500 #1200, #1500
Abrasive Belt Size:
#400, #400, #600 #400, #400, #600
Feeding Speed:
0-19.2/mmin(Inverter)(0 – 63 ft/min (Inverter))
First Belt Speed:
0–20 m/s (with inverter)
Second Belt Speed:
0–16 m/s (with inverter)
Cross Belt Speed:
Max. 14m/min (Inverter)(Max. 46 ft/min (Inverter)
Longitudinal Belt Speed:
Max. 13.1 m/min (Inverter)(Max. 43 ft/min (Inverter))
Total Motor Power:
55.2 kW(74 HP)
First Belt Motor:
18.5 kW – 4P
Second Belt Motor:
15 kW – 4P
Feeding Motor:
4.0 kW (Inverter)(5.4 HP)
Lifting Motor / Rise & Decline Motor:
0.75 kW – 4P(1.5 HP, 4P)
Brush Motor:
0.25 kW – 6P(0.36 HP × 2, 6P)
Dust Outlet Diameter / Ports:
Ø150 mm × 12(Ø5.9" × 12)
Dust Collection Air Velocity:
> 30 m/s(> 98 ft/s)
Working Air Pressure:
0.4–0.8 MPa(58 – 116 psi)
Compressed Air Consumption:
< 1.0 m³/min(< 35 CFM)
Overall Machine Dimensions:
4445 × 2032 × 2286 mm(175" × 80" × 90")
Machine Weight:
9,980 kg
