Sanding and Texturizing CSD 650 SOLO
Key features and applications

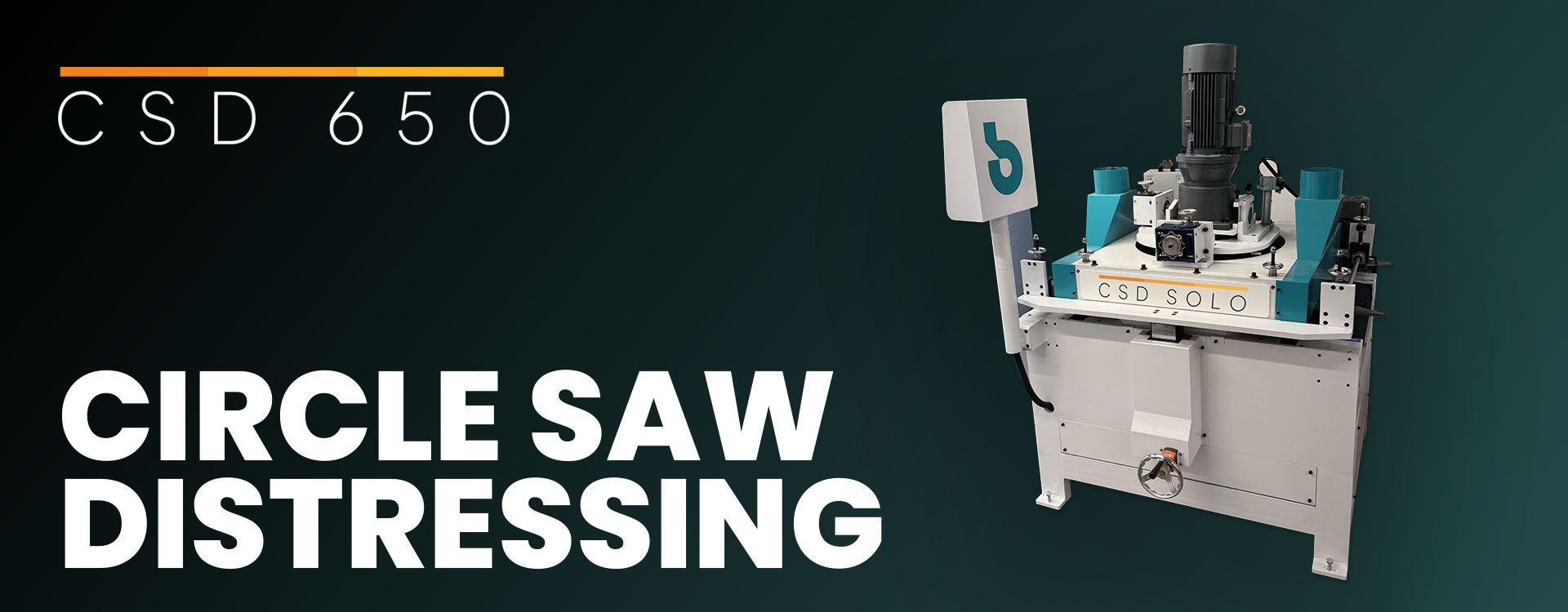

The BOSS CSD 650 Circle Saw Distressing Machine recreates the authentic appearance of traditional re-sawn lumber by producing realistic circle-sawn blade marks reminiscent of antique wood flooring and reclaimed timber. Available, in a single balde and double blade, the CSD 650 is designed for high-volume production, it delivers a consistent handcrafted look while allowing operators to adjust the depth, spacing, and pattern of the saw marks to achieve a wide range of distressed finishes. Ideal for flooring, furniture components, paneling, and decorative wood surfaces, the CSD 650 enables manufacturers to produce premium rustic products that command higher market value while maintaining exceptional production efficiency.

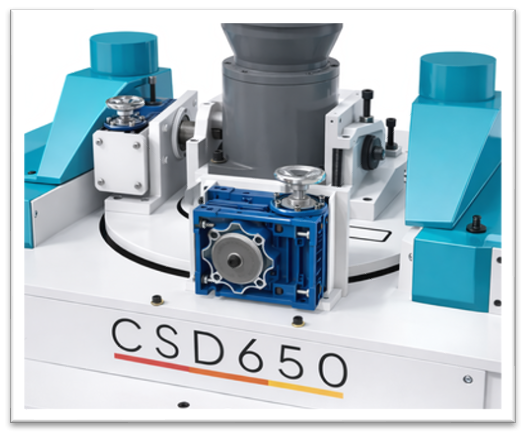

Fully Adjustable Blade Tilt Positioning
Precision gearbox and hand wheel controls allow operators to easily adjust blade angle, tilt, and cutting depth to create a wide variety of authentic random curved saw patterns for a natural reclaimed wood appearance.

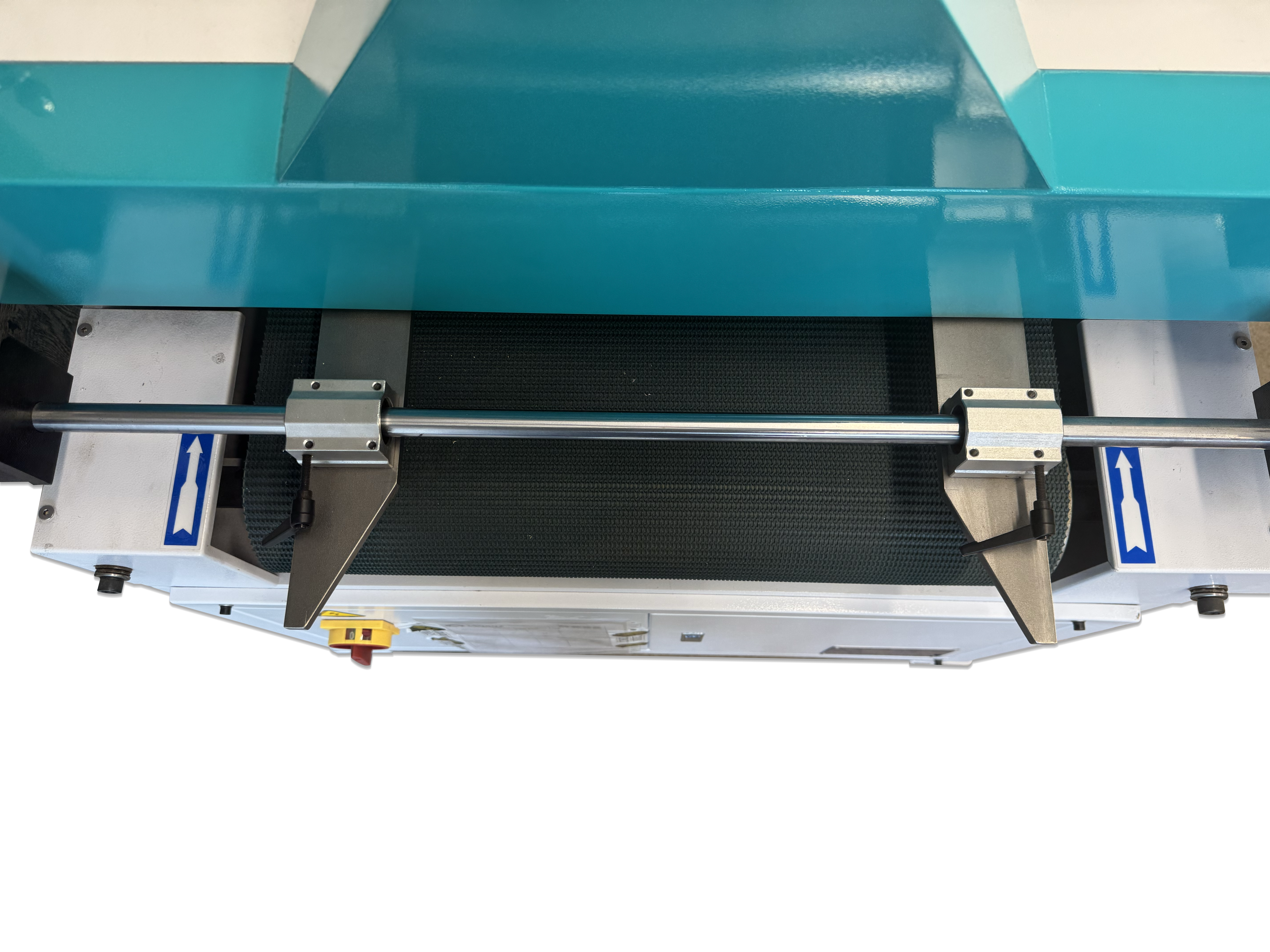

Adjustable left and right guide fences
Dual guide fences provide superior stock control and alignment, keeping boards stable through the cutting zone for consistent distressing patterns and repeatable results. Designed for efficient production, the dual-fence system improves accuracy, reduces material movement, and allows operators to confidently process a wide range of board widths.

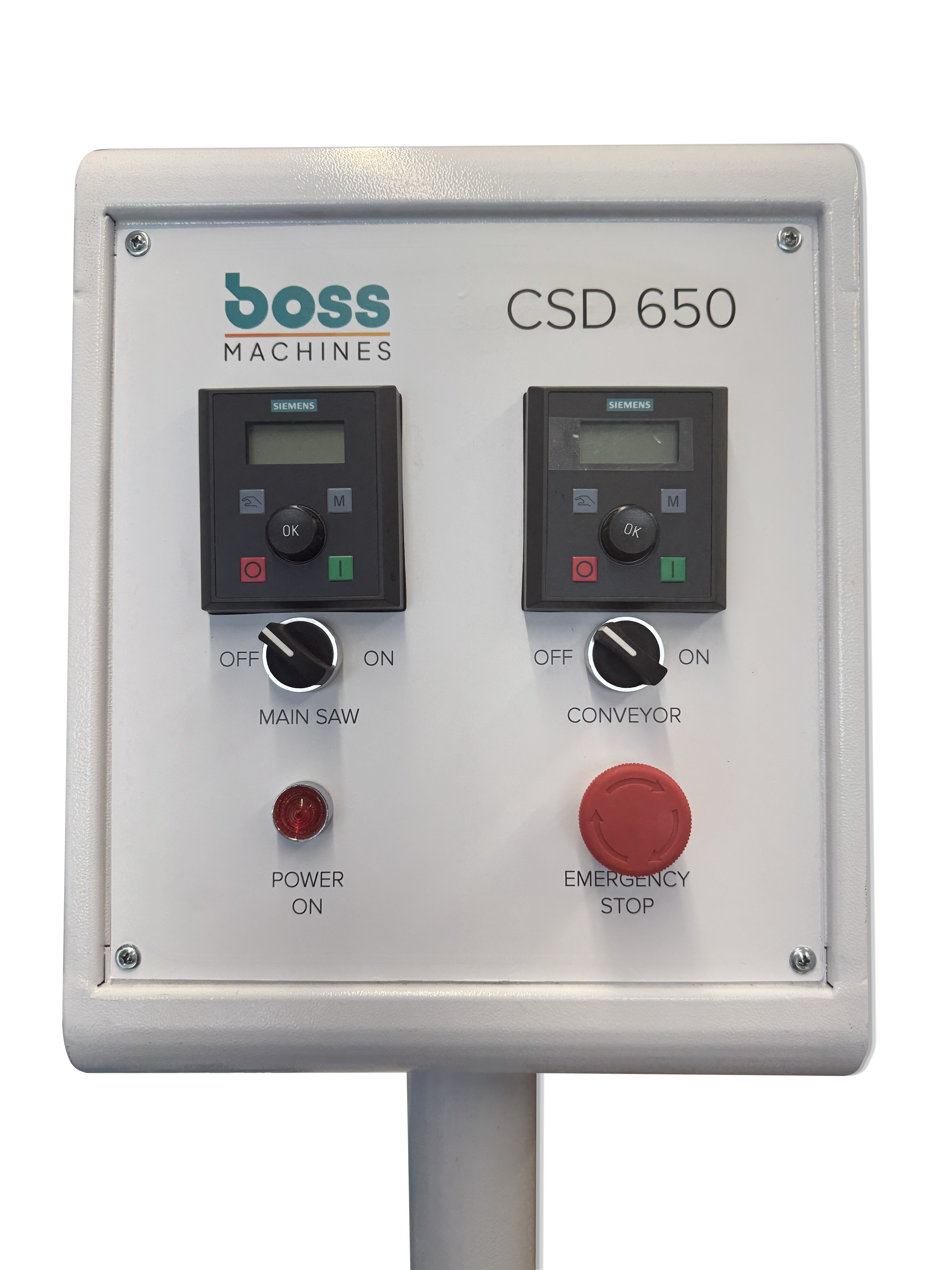

Integrated Control & Safety System
Features an emergency stop and comprehensive operator safety controls, combined with an intuitive control panel with variable speed adjustment for enhanced machine control, flexibility, and safe operation.
Specifications
Specification
CSD 650 Due
CSD 650 SOLO
Max Working Width:
650mm(25.6”)
650mm(25.6”)
Min Working Width:
8mm(8”)
8mm(8”)
Minimum Thickness of Board:
8mm(0.3”)
8mm(0.3”)
Max Working Thickness:
200mm(7.9”)
200mm(7.9”)
Feeding Speed:
0-39 ft/min
0-39 ft/min
Main Motor Power:
6HP (2x 3HP)
3HP
Feeding Motor:
0.75HP
0.75 HP
Production Capacity:
1500 m2 -16,145 ft. (8 hours)
1500 m² – 16,145 ft. (8 hours)
Voltage:
440-460 V/60Hz
440-460 V/60Hz
Overall Machine Dimensions:
70"x85"x50"
70×48×50”
Machine Weight:
3,500 Ibs
1,800lbs
