Planing GOBI
Key features and applications
The planer sander is engineered for efficient one-pass calibration and surface finishing of solid wood, MDF, veneer, and engineered panels. Designed to remove material accurately while delivering a smooth, consistent finish, it combines heavy-duty planing capability with precision sanding in a single operation.

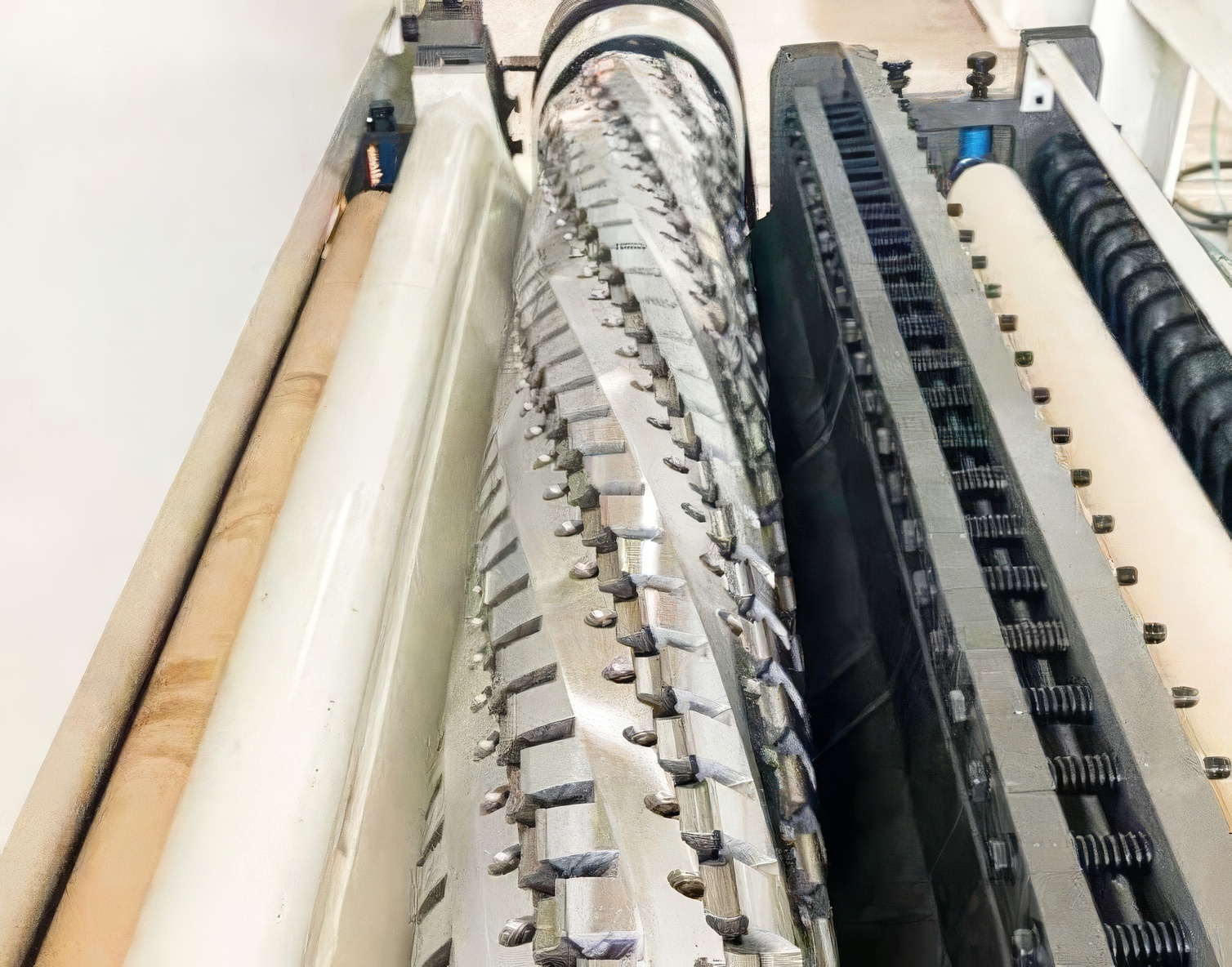

Precision spiral planer head for high surface quality

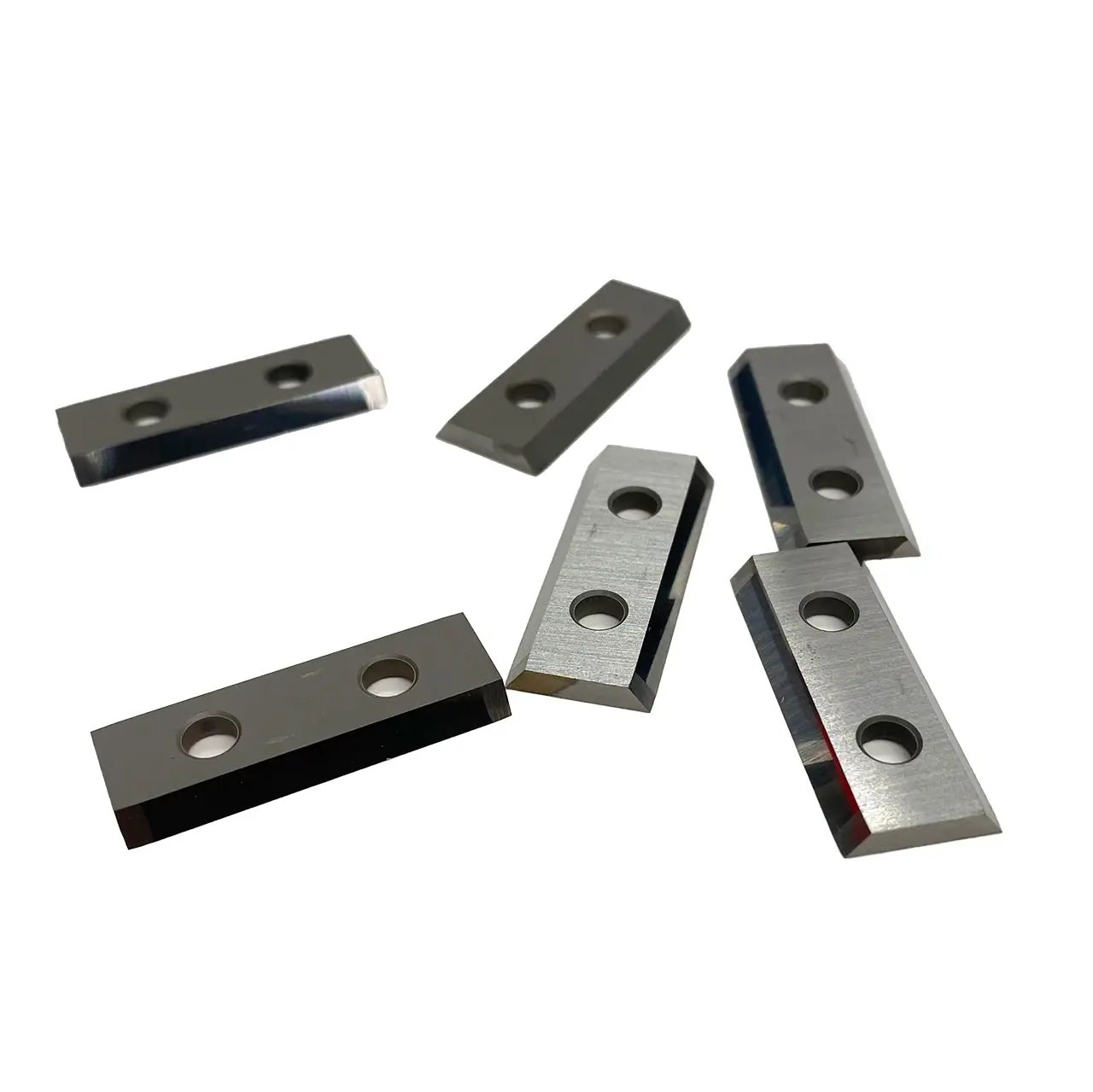

The planer head is fitted with 477 carbide knife inserts arranged in a 9-line spiral configuration around the head. This spiral layout ensures continuous cutting engagement and smooth material removal across the full working width. Each carbide insert features a small spiral angle and a carefully engineered arc profile that matches the contour of the roller. This reduces cutting resistance, improves chip evacuation, and delivers an exceptionally smooth, high-quality surface finish.
.jpg?width=1508&height=1184&name=Scott_keeling_upscale_upscaled%20(5).jpg)

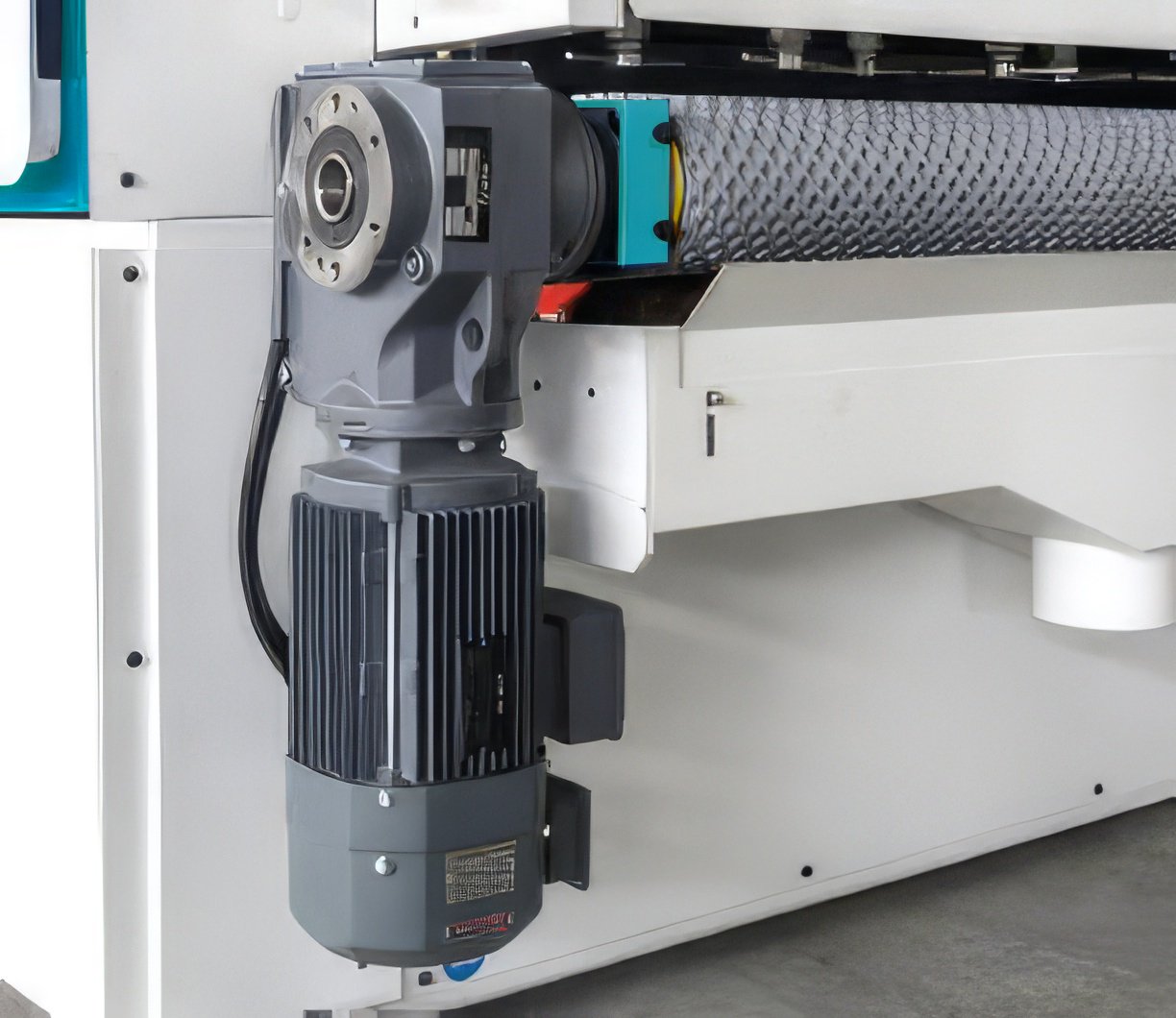

ABB IE3 Motors drive down energy costs and carbon footprint
ABB IE3 Premium Efficiency Motors maximizes operational uptime, reduces electricity overhead, and ensures consistent torque for a flawless finish. Featuring robust IP55 dust protection and Class F insulation, these motors are engineered to handle continuous sanding loads while slashing energy costs.
Integrated Safety & Feed Mechanisms

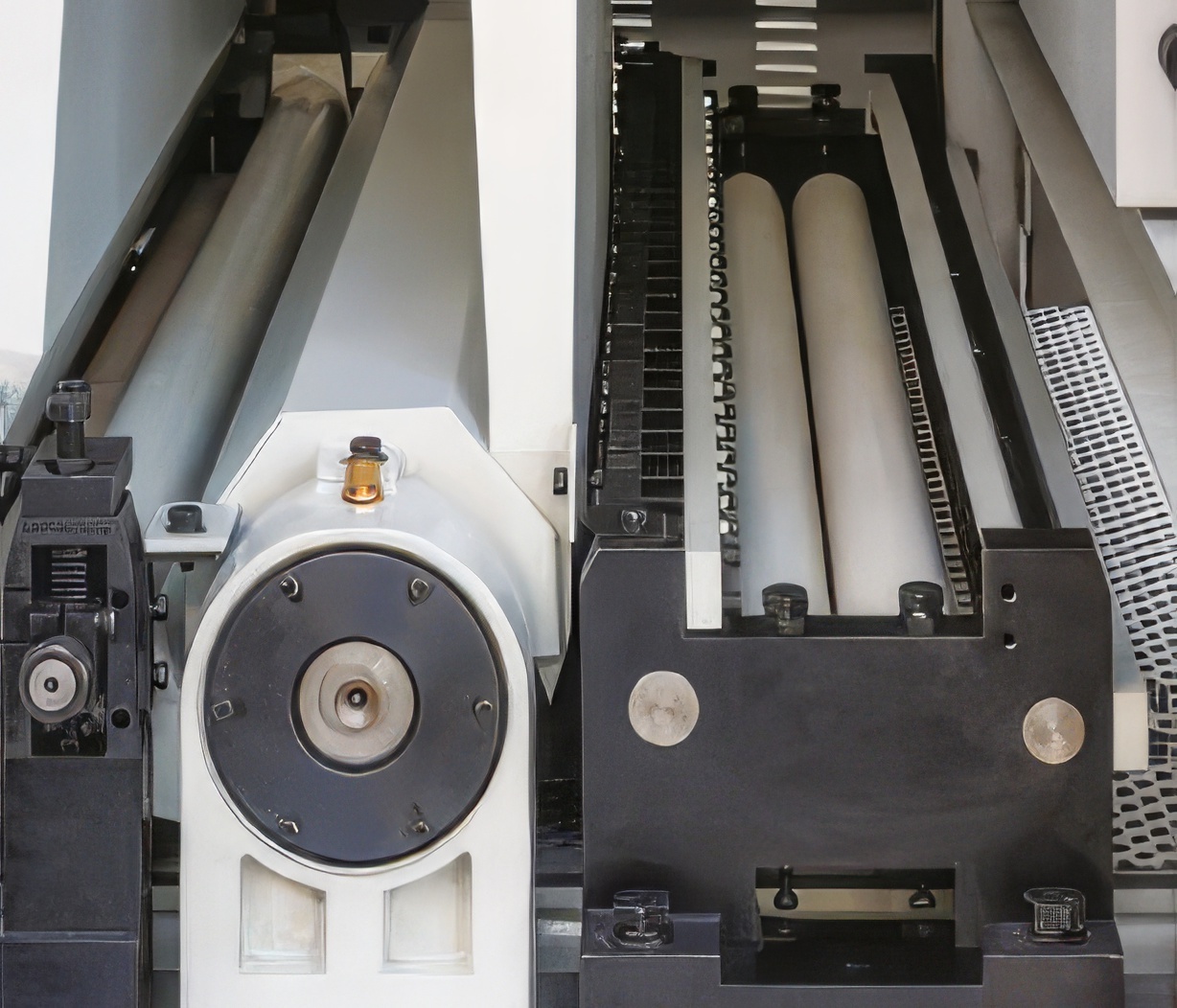

The GOBI Planer Sander features robust safety mechanisms situated before and after the working units. To guarantee smooth and secure feeding, the infeed zone is equipped with anti-kickback fingers, directional press rollers, and segmented press shoes.

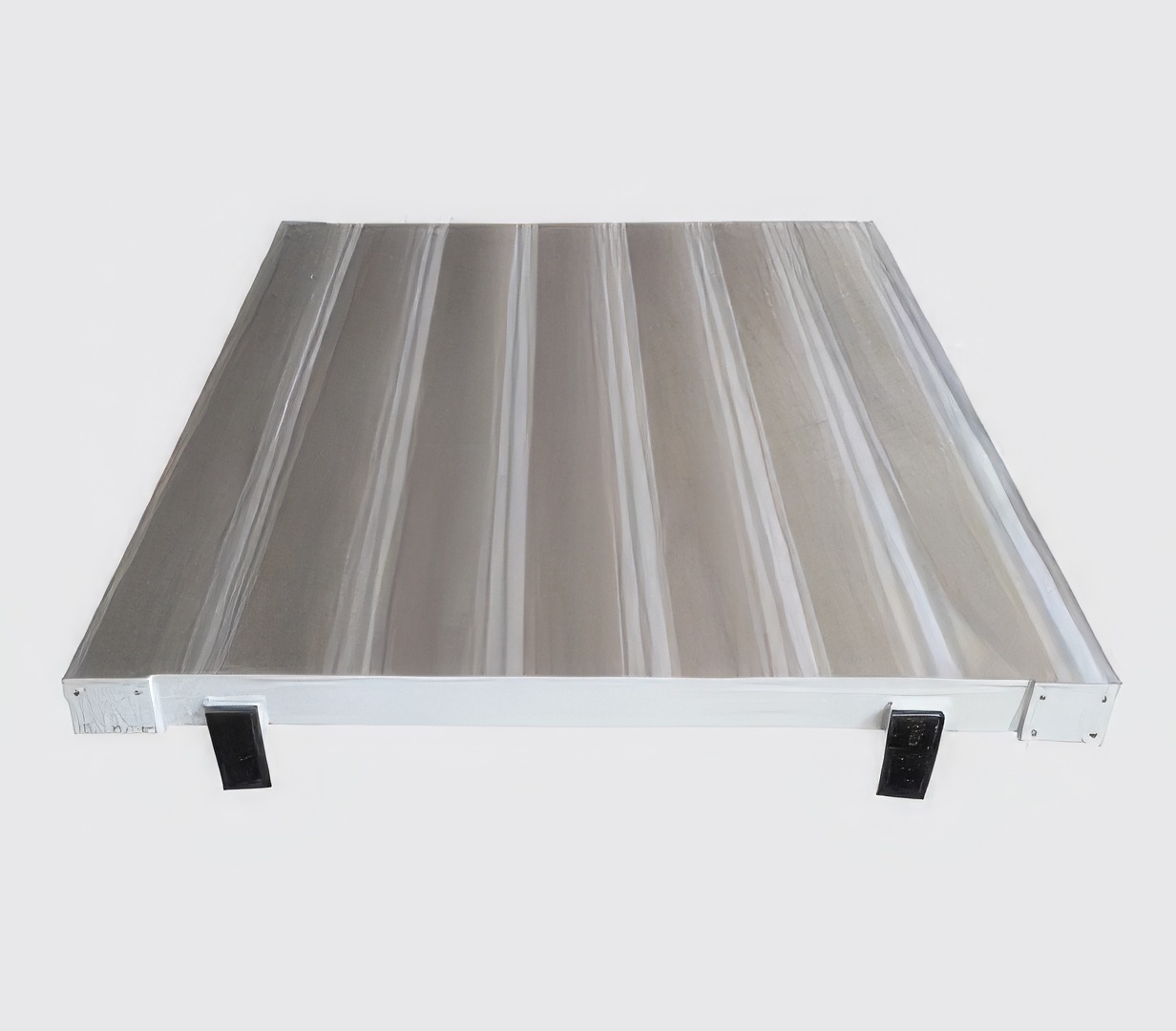

Precision-Engineered Steel Feed Table
Built for long-term industrial durability, the heavy-duty steel feed table is fully through-heat-treated to eliminate internal material stress. It features an exceptional planarity tolerance within 0.03mm, ensuring a perfectly flat reference surface. Additionally, the table surface is fine-ground to a mirror finish, preventing friction and premature wear on the internal side of the conveyor belt.
High-Efficiency Integrated Drive
SystemExperience unmatched operational stability with our helical bevel gear reducer, seamlessly integrated with a high-perfor- mance inverter motor. This space-saving, heavy-duty powertrain delivers continuous, ultra-smooth torque transfer. Engineered for industrial endurance, it eliminates vibrations to provide steady speed regulation and long-term durability.

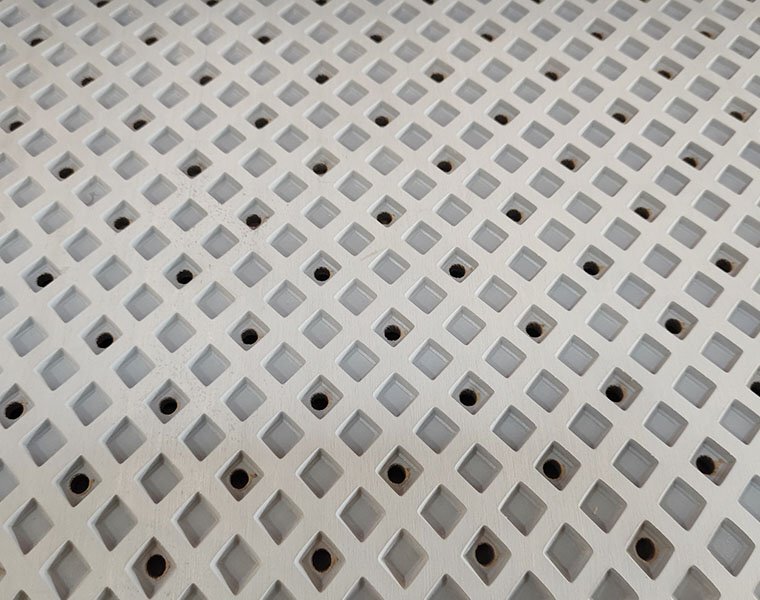

GripMaxTM Conveyor Technology
A high-friction industrial conveyor belt system that securely controls workpieces through the sanding zone, reducing slippage, improving finish consistency, and providing exceptional belt longevity in multi-shift production environments.
Specifications
Specification
GOBI
Max Working Width:
1300mm(51.18 in)
Min Working Width:
50mm(1.97in)
Minimum Thickness of Board:
6.5mm(0.26in)
Max Working Thickness:
150mm(5.91in)
Minimum Working Length:
515mm(20.28in)
Planer Knife Size:
30 × 12 × 2.5 mm(1.18 × 0.47 × 0.10 in)
First Roller Diameter:
240 mm(9.45 in)
Second Roller Diameter:
210 mm(8.27 in)
Planer Roller Diameter:
180mm(7.09 in)
Abrasive Belt Size:
1330 × 2200 mm(52.36 × 86.61 in)
Feeding Speed:
0–19 m/min(0–62.3 ft/min)
First Belt Speed:
24 m/s(4724 ft/min)
Second Belt Speed:
18 m/s(3543 ft/min)
Total Motor Power:
63.62 kW(85.3 HP)
First Belt Motor:
22 kW(29.5 HP)
Second Belt Motor:
15 kW(20.1 HP)
Planer Motor Power:
22 kW(29.5 HP)
Feeding Motor:
4 kW(5.4 HP)
Brush Motor:
0.25 kW(0.34 HP)
Air Jet Blower Motor:
0.025 kW(0.03 HP)
Working Air Pressure:
0.4–0.8 MPa(58–116 PSI)
Machine Weight:
Approx. 5100 kg(11,243 lb)
