Sanding and Texturizing KALAHARI

KALAHARI copy
ddddddd_upscale_upscaled (3) copy
ddddddd_upscale_upscaled (3) copy 2
Brochure Finance Get Quote Layout

Key features and applications

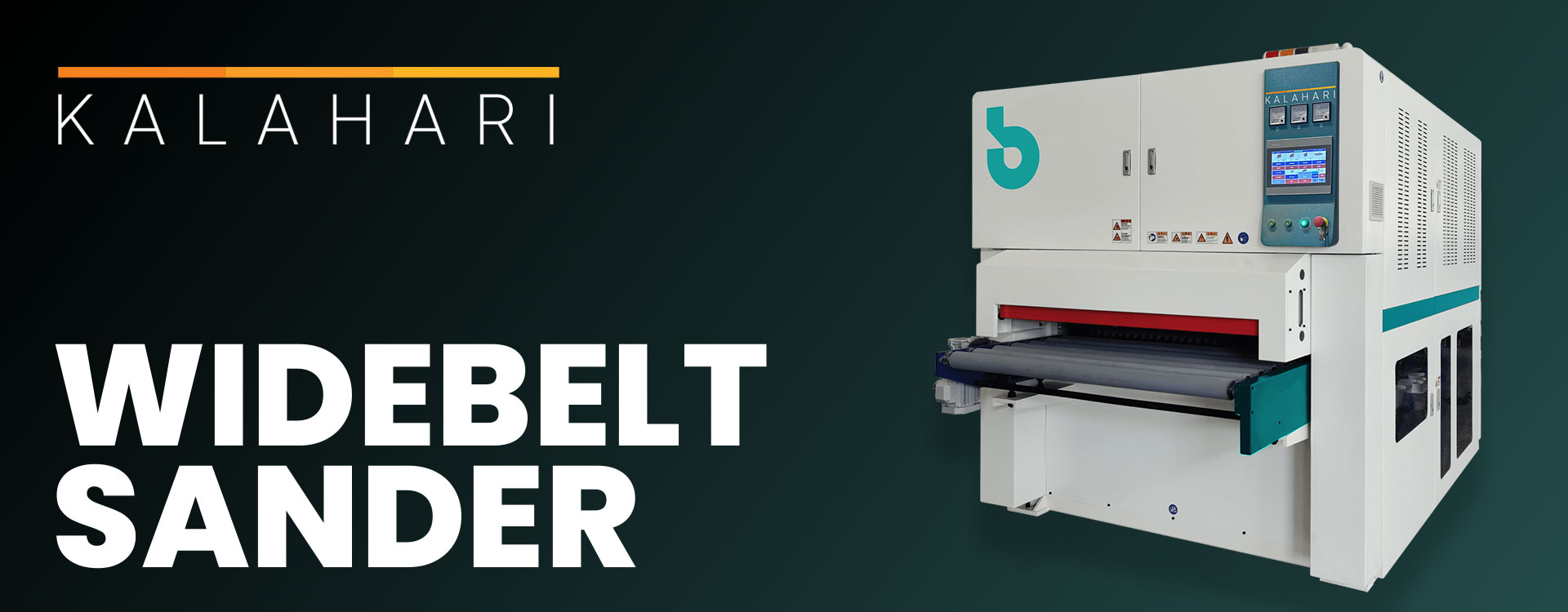

The BOSS Kalahari Wide Belt Sander is built for manufacturers who demand precision, reliability, and long-term performance. Its heavy-duty steel frame minimizes distortion for exceptional sanding accuracy, while the German OPTIBELTTM triangular feed belt, SKF bearings, ABB electrical components, and dynamically balanced rollers ensure smooth, vibration-free operation and extended machine life.

Designed to maximize productivity, the Kalahari features independent pressure control, tower-style hold-down rollers for superior workpiece stability, motorized air jet belt cleaning and cooling, and an automatic belt braking system that helps prevent abrasive damage during tracking issues or power loss. A precision-ground feed table and variable feed speeds from 6–22 m/min (20–72 ft/ min) provide outstanding finish quality across a wide range of solid wood and panel applications.

This the 3-head Kalahari, available in 1100mm (43”) and 1350mm (53”) delivers the performance, durability, and consistency required for demanding single or multi-shift production environments. A 2-head configiration is also available in 700 mm (27”) and 1100 mm (43”) working widths.

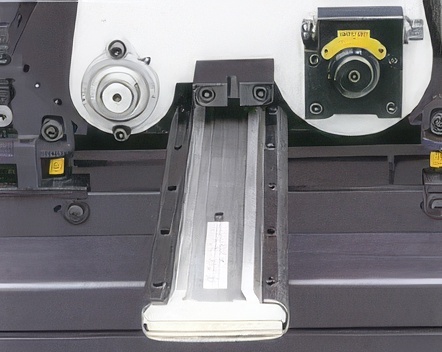

Wide Sanding Pad for Superior Finishing

The wider sanding pad is specially designed for veneer and solid wood panels, providing improved contact coverage and consistent pressure distribution for a superior surface finish. Ideal for high-quality finishing applications, it delivers uniform sanding results while reducing visible sanding marks and improving overall panel quality.

ddddddd_upscale_upscaled (3) copy

Standard ABB Electrical Componentsry (UL and CSA Approved)

The electrical cabinet. mounted at the front of the machine provides convenient access and simplified maintenance while housing the machine’s essential electrical components, including the power supply, internal transformer, contactors, circuit breakers, and PLC control system. Built according to CE safety standards, the integrated electrical system ensures reliable operation, enhanced protection, and efficient troubleshooting for consistent machine performance.

bbfb63e6d24b2ba6.jpg_20221026142834_800x800

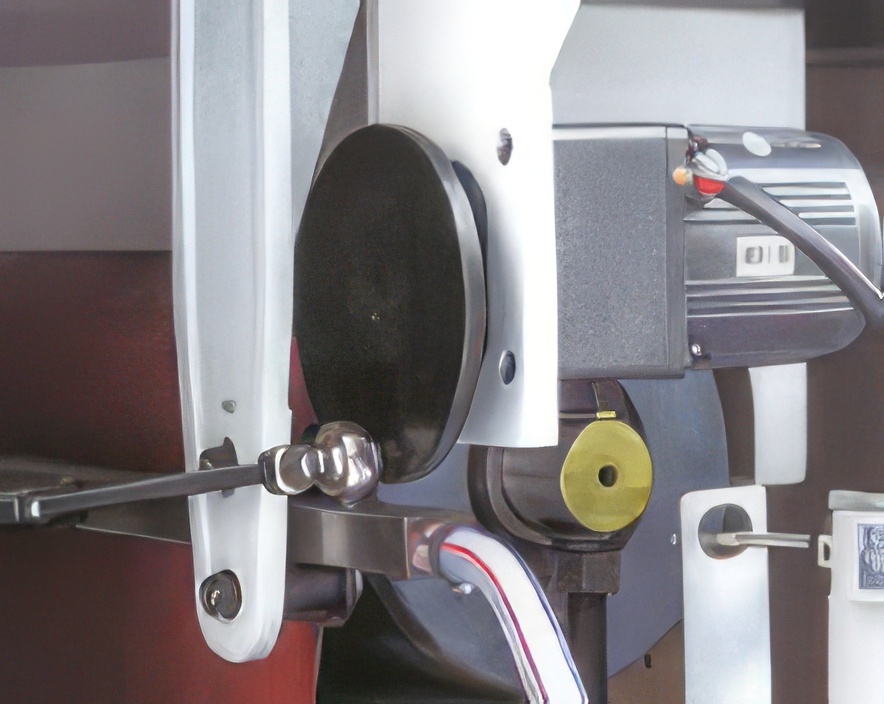

Air Jet Abrasive Belt Cleaning & Cooling System

The integrated air jet blower system con- tinuously cleans and cools the abrasive belt during operation, removing dust buildup while reducing heat generation. This helps extend abrasive belt life, maintain consistent sanding performance, and improve finish quality and precision throughout demanding production applications.

ddddddd_upscale_upscaled (3) copy 2

Specifications

Specification
KALAHARI 3 HEAD 1100R-R-RC
KALAHARI 3 HEAD 1350R-R-RC
Max Working Width:
43.3"
53.1"
Min Working Width:
40"
40"
Minimum Thickness of Board:
3mm
3mm
Max Working Thickness:
150mm
150mm
Minimum Working Length:
460 mm (18.1")
460 mm (18.1")
Conveyor Size / Feeding Belt Size:
1110 × 4700 mm (43.7” × 185”)
1360 x 4700 mm (53.5” x 185”)
Abrasive Belt Size:
1130 × 2600 mm (44.5” × 103.1”)
1380 x 2620 mm (54.3” x 103.1”)
Feeding Speed:
0–19 m/min (0–62 ft/min) Variable
0–19 m/min (0–62 ft/min) Variable
First Belt Speed:
22 m/s (72 ft/s)
22 m/s (72 ft/s)
Second Belt Speed:
22 m/s (72 ft/s)
22 m/s (72 ft/s)
Third Belt Speed:
16 m/s (52 ft/s)
16 m/s (52 ft/s)
Total Motor Power:
60.2 kW (80.7 HP)
60.2 kW (80.7 HP)
First Belt Motor:
22 kW (29.5 HP)
22 kW (29.5 HP)
Second Belt Motor:
18.5 kW (24.8 HP)
18.5 kW (24.8 HP)
Third Belt Motor:
15 kW (20.1 HP)
15 kW (20.1 HP)
Feeding Motor:
4 kW (5.4 HP) Variable
4 kW (5.4 HP) Variable
Lifting Motor / Rise & Decline Motor:
0.37 kW (0.5 HP)
0.37 kW (0.5 HP)
Brush Motor:
0.25 kW (0.34 HP)
0.25 kW (0.34 HP)
Working Air Pressure:
0.4–0.8 MPa (58–116 PSI)
0.4–0.8 MPa (58–116 PSI)
Compressed Air Consumption:
1.5 m³/min (53 CFM)
1.5 m³/min (53 CFM)
Overall Machine Dimensions:
2650 × 1750 × 2300 mm (104.3” × 68.9” × 90.2”)
2650 x 2000 x 2300 (104.3” x 78.7” x 90.2”) mm
Machine Weight:
4800 kg (10,582 lbs)
5200 kg (11,464 lbs)

Frequently Asked Questions

What is the BOSS Kalahari Wide Belt Sander designed for?

The BOSS Kalahari Wide Belt Sander is designed for manufacturers requiring precision, reliability, and consistent sanding performance across a wide range of solid wood and panel applications. Its heavy-duty construction and precision-ground feed table support demanding production environments.

How does the Kalahari help maintain consistent sanding quality?

The machine uses independent pressure control, tower-style hold-down rollers, a precision-ground feed table, and variable feed speeds to provide stable workpiece handling and consistent sanding results.

Is the Kalahari suitable for high-quality veneer and solid wood finishing?

Yes. The wider sanding pad is specifically designed for veneer and solid wood panels. It provides improved contact coverage and consistent pressure distribution, helping produce uniform sanding results, reduce visible sanding marks, and improve overall panel quality.

What sanding configurations are available with the Kalahari?

The Kalahari is available in both 2-head and 3-head configurations. The 3-head version is available in 1100 mm and 1350 mm working widths, while the 2-head configuration is available in 700 mm and 1100 mm working widths.

How does the air jet system improve sanding performance?

The integrated air jet blower continuously cleans and cools the abrasive belt during operation. It removes dust buildup and reduces heat generation, helping extend abrasive belt life while maintaining consistent sanding performance and finish quality
