Moulding Magnitude 6018 Wide

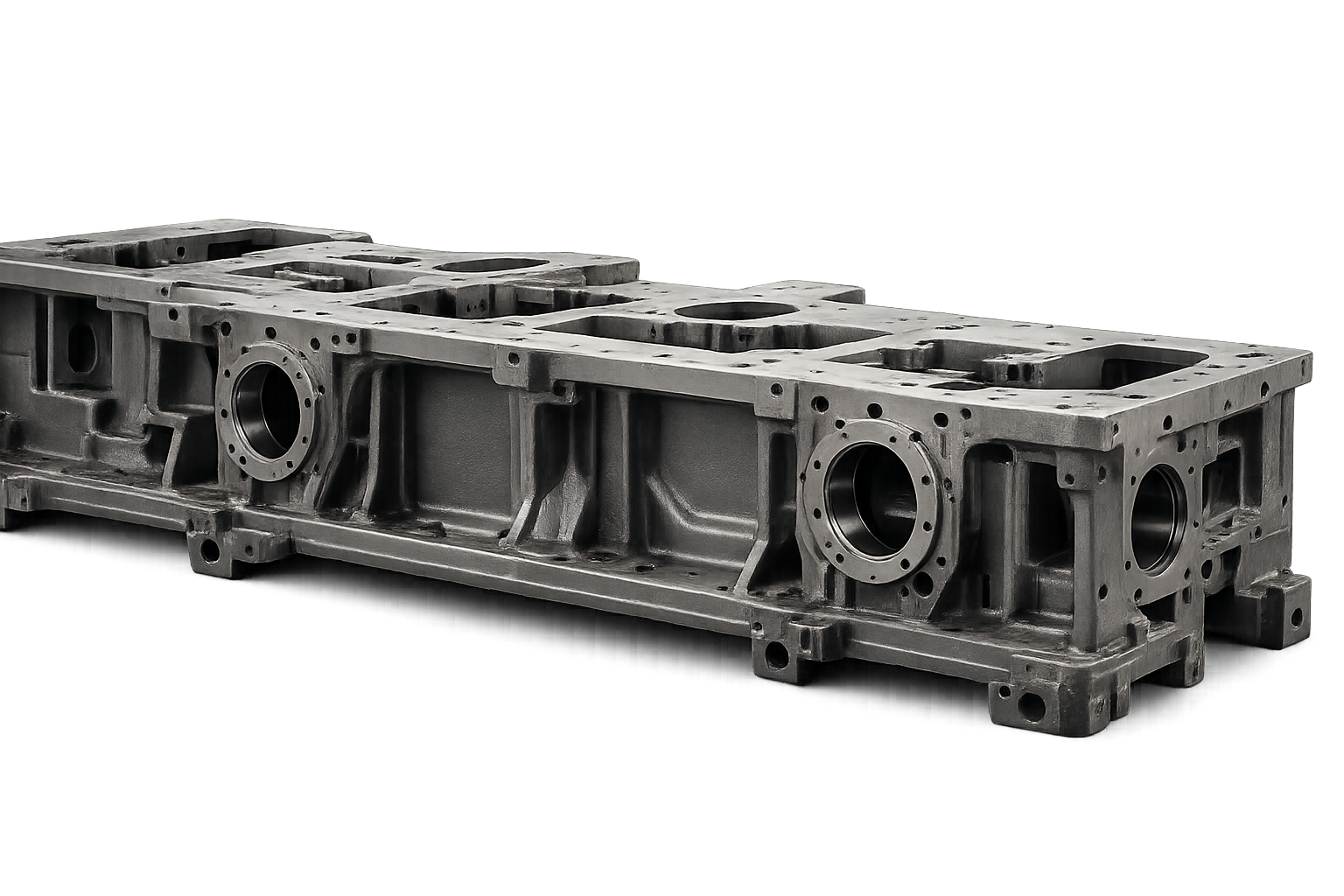

YJF FC300 Certified Grey Cast Iron Frame
The Magnitude is built on an FC300 certified grey cast iron frame — the sam e grade used in precision machine tool manufacturing. Specifically formulated to absorb temperature fluctuation and maximize vibration dampening, this foundation delivers consistent, accurate mouldings pass after pass. The result is reduced wear on machine components, extended service life, and the dimensional reliability that high-volume production demands.
BOSS ULTRA-DRIVE Feeding Works™
The MAGNITUDE feed system features 8 driven top rollers and 3 driven bottom rollers powered by a heavy-duty Cardan shaft — no chains, no maintenance headaches. An infeed side pressure roller automatically positions variable-width stock against the fence before the first bottom spindle, ensuring consistent material control without operator intervention. Driven by an IE3 high-efficiency feed motor with inverter drive, this system feeds rough hardwood and softwood with authority at speeds up to 40m/min.

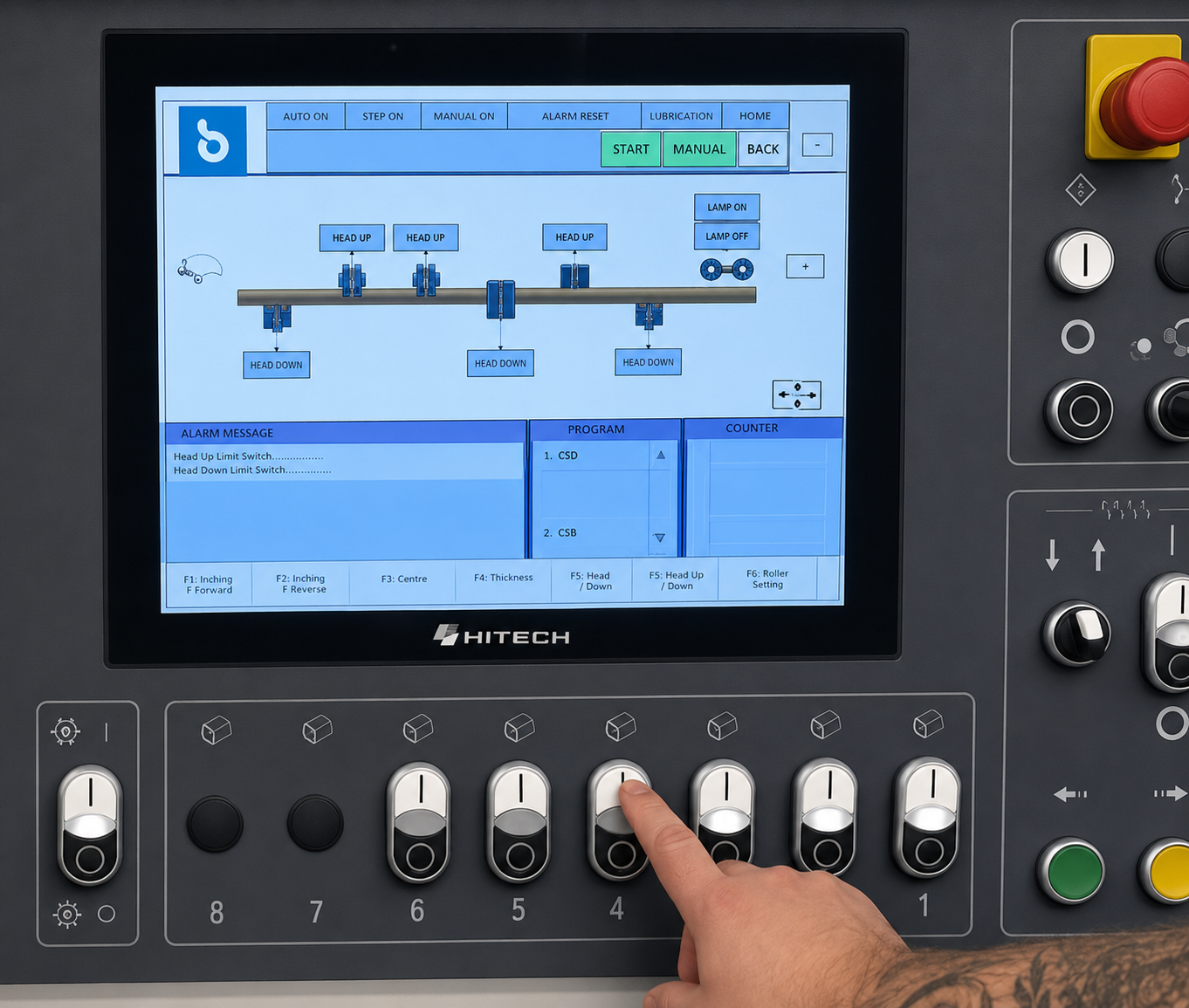

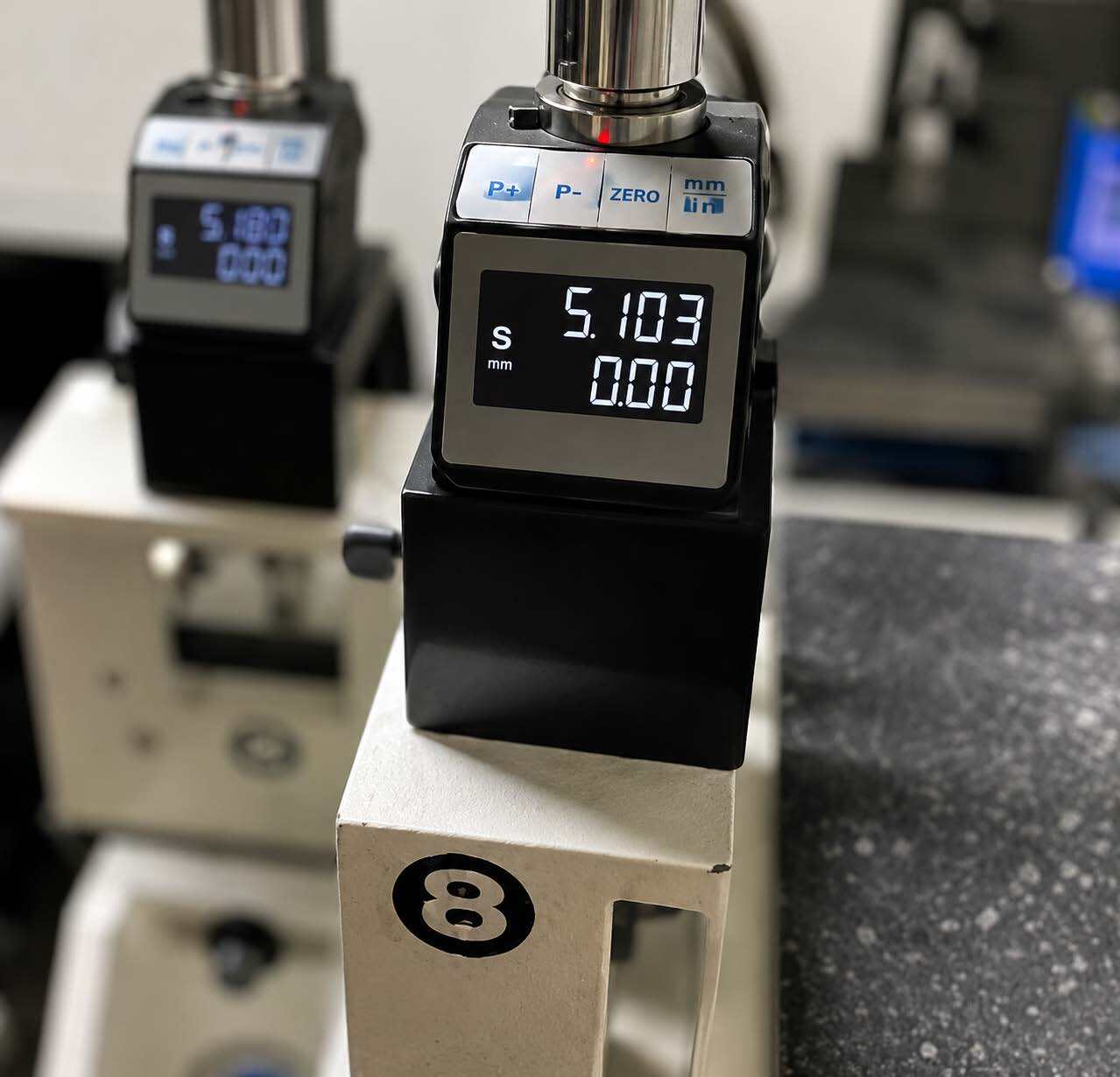

BOSS SPS™ Servo Positioning System + OPTITRON™ Operating System
The BOSS OPTITRON™ operating system pairs a 15” industrial touchscreen with a handheld remote for precise CNC spindle positioning, giving operators full machine control from anywhere on the floor. Programmable hot keys store frequently used setups for instant recall, while micro-adjustment capability allows experienced operators to compensate for tooling fatigue mid-run — without stopping production. Changeover downtime is one of the biggest profit leaks in any moulding operation, and OPTITRON is engineered to close it.

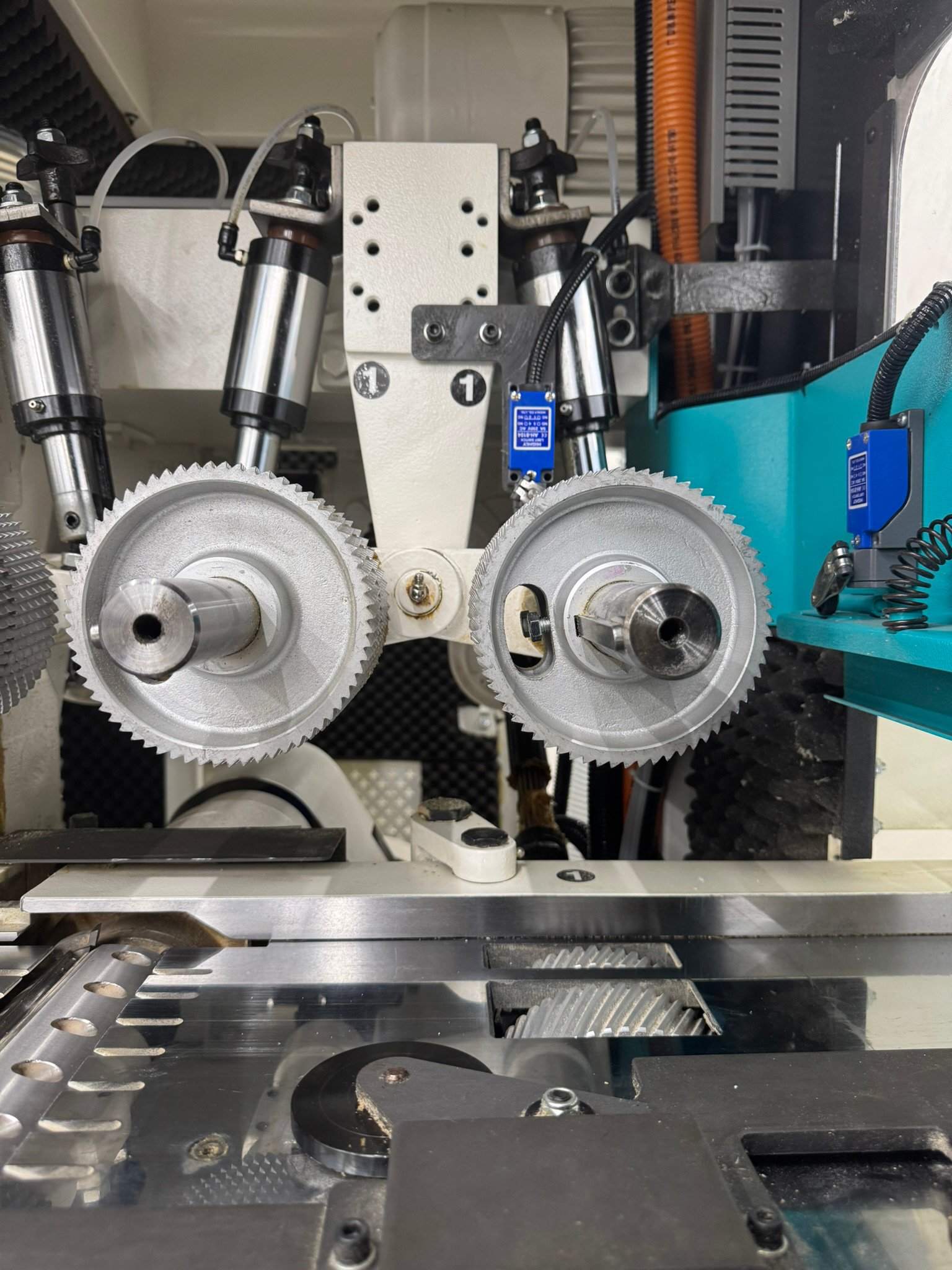

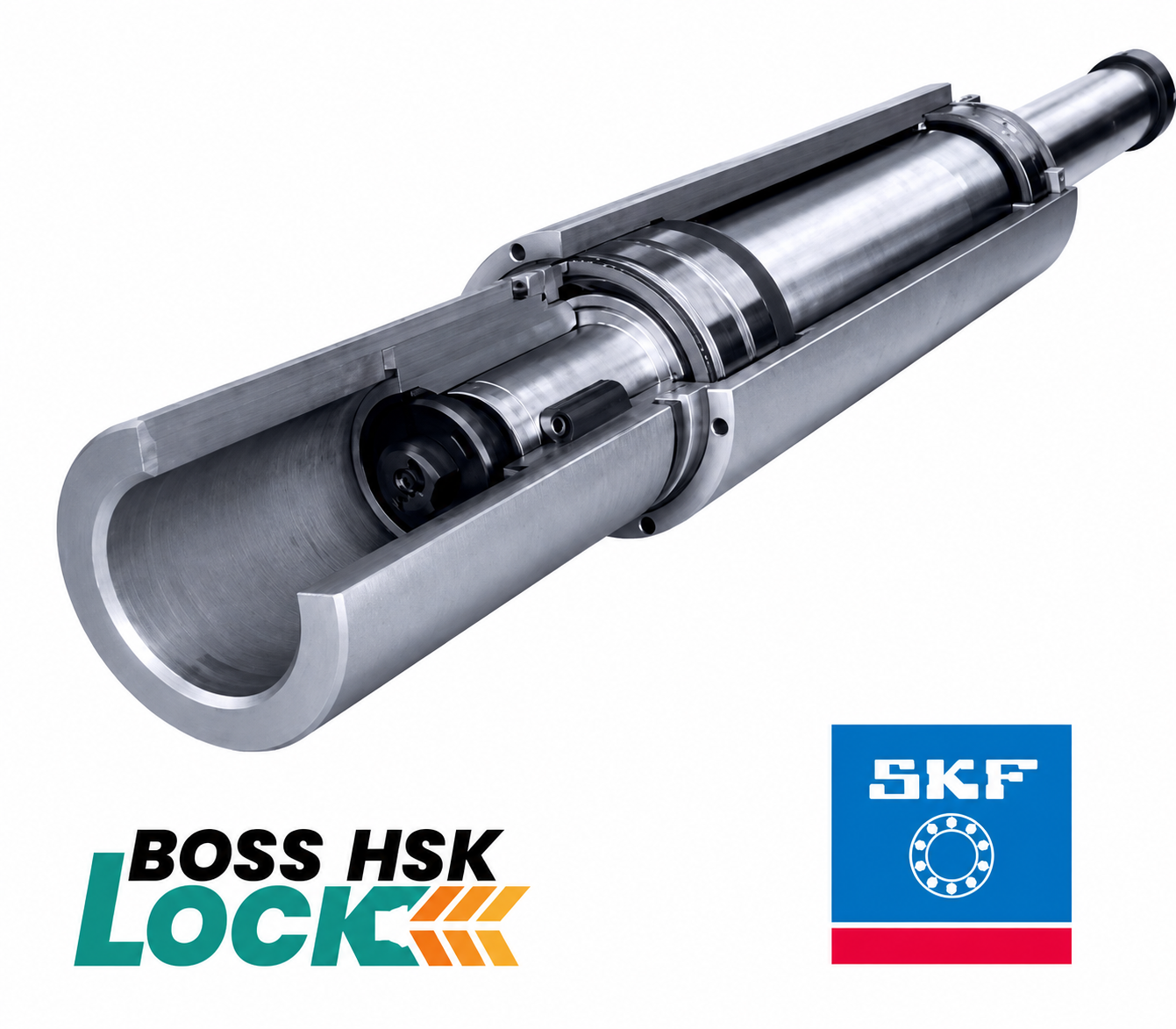

High-Performance Spindles with 2+2 SKF Bearing Assembly
BOSS high-performance spindles feature a 2+2 SKF bearing assembly, hardened 4140 tool steel, and dynamically balanced spindle and pulley for unrivaled finish quality and dimensional accuracy under continuous load. Backed by the BOSS Assurance 24-hour spindle exchange program, your investment stays protected and your production stays running.

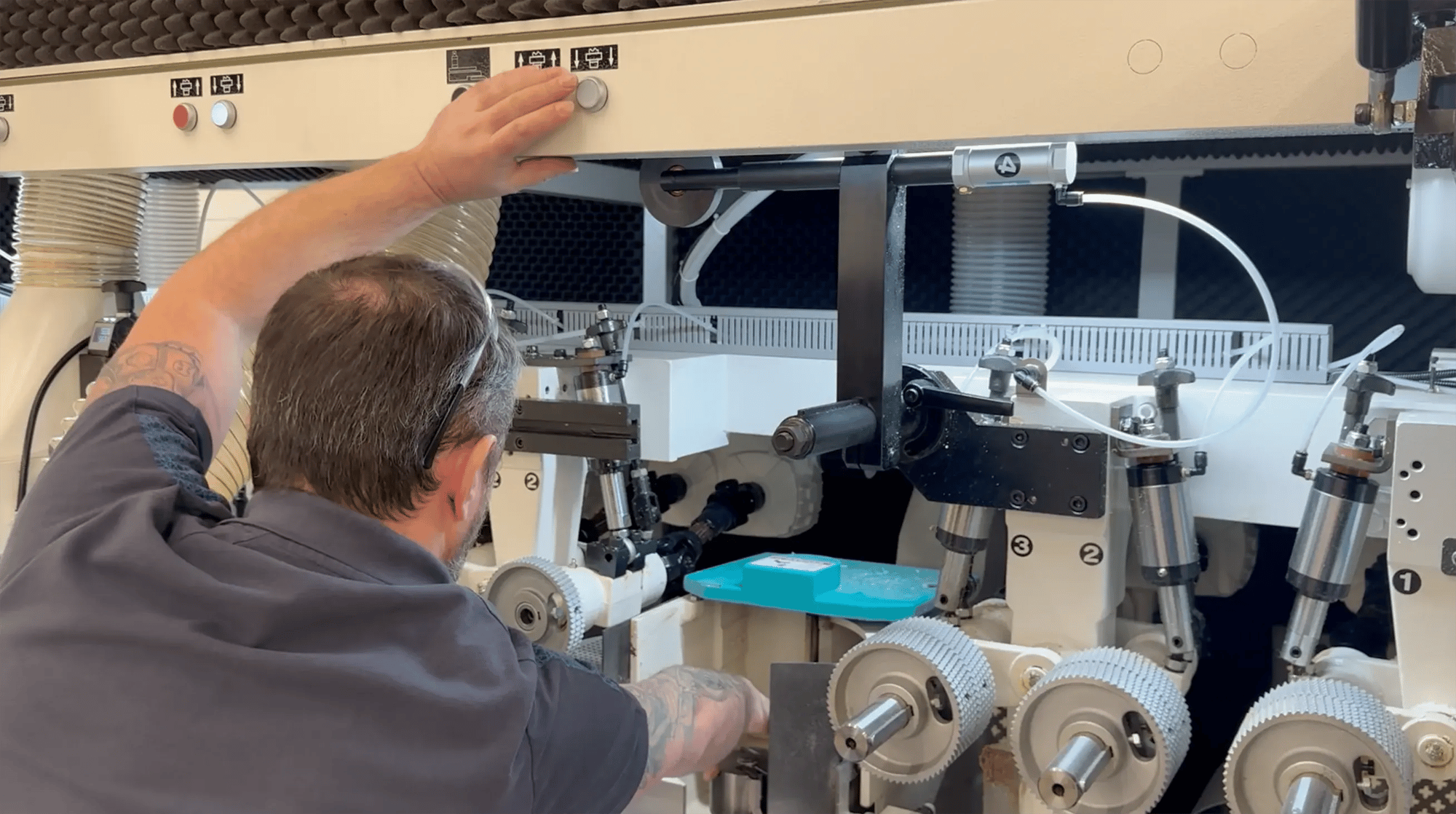

EZ-BOSS™ Quick Set Package
The EZ-BOSS™ Quick Set Package turns costly changeover time into a competitive advantage. Tool-free adjustments, integrated measurement scales, and visible positioning markers eliminate guesswork, while a quick-adjust fence after the right vertical spindle matches tool diameter changes in seconds — improving both setup speed and surface finish quality simultaneously.

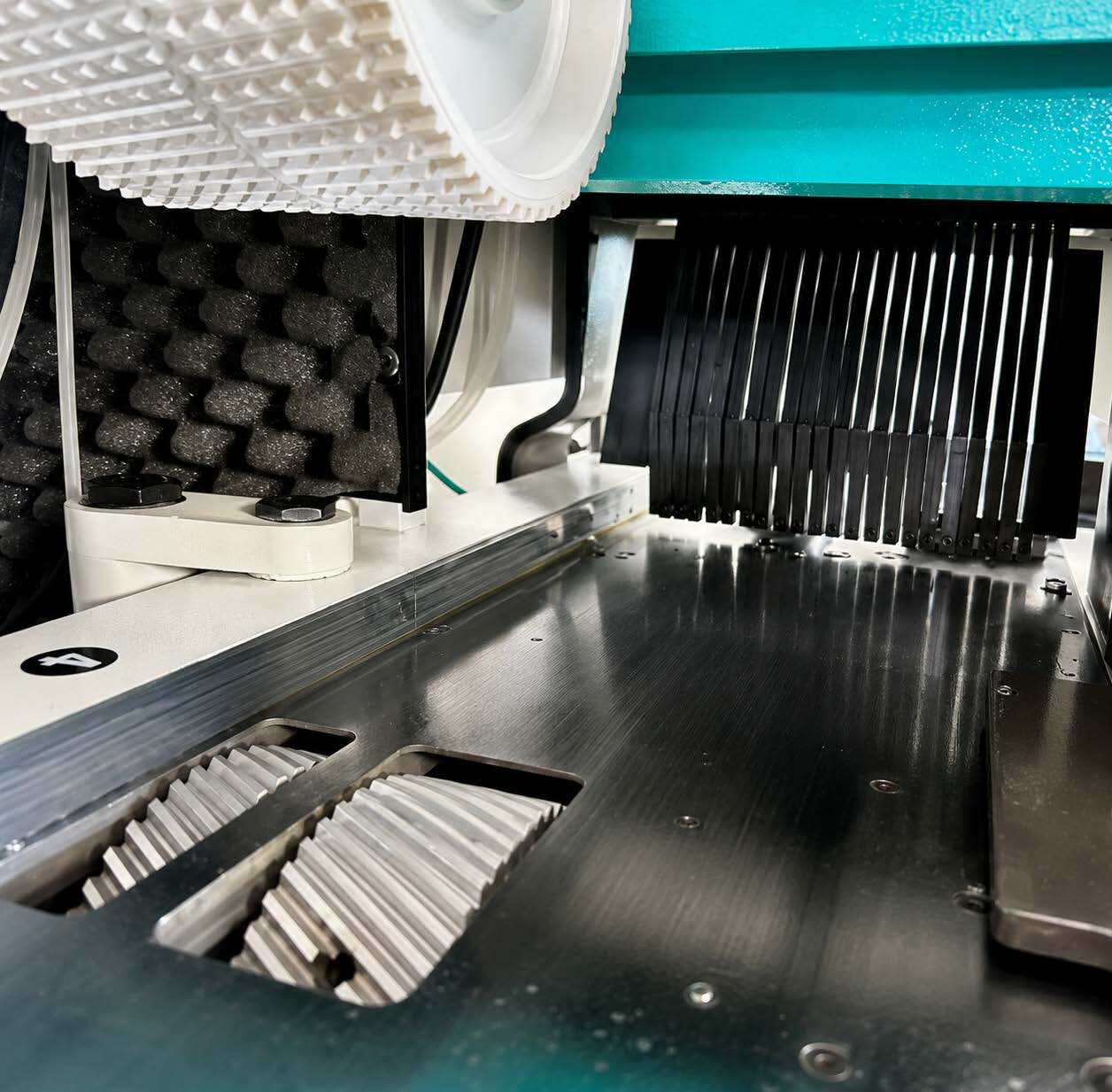

BOSS BODYGUARD™ Automatic Safety System
The patent-pending BOSS BODYGUARD™ Automatic Safety System removes operator compliance from the safety equation entirely. Tamper-proof pneumatic anti-kickback fingers deploy automatically and cannot be bypassed — eliminating liability exposure and ensuring safety mechanisms remain fully functional at full production speed.
Specifications
Specification
Magnitude 6018 Wide
Max Working Width:
305mm ( 12" )
Min Working Width:
20mm ( 3/4" )
Minimum Thickness of Board:
7mm ( 1/4" )
Max Working Thickness:
160mm ( 61/2" )
Minimum Working Length:
900mm ( 351/2" )
Min Working Length (End to End):
300mm ( 12" )
Spindle Speed:
6000 RPM 8000 RPM (Optional)
Tool Cutting Circles (1st Bottom Spindle):
110mm-168mm ( 4.92" -7.87" )
Tool Cutting Circles (Vertical Spindles):
110-250mm ( 5.51"-9.84" )
Tool Cutting Circles (Horizontal Spindles):
110-200mm ( 5.51"-9.84" )
Adjustment Range (Vertical Spindles):
60mm ( 23/8" )
Adjustment Range (Horizontal Spindles):
20mm ( 13/16" )
Feeding Speed:
6-40m/min ( 40 to 120' feet/min. )
Feeding Motor:
7.5kw ( 10HP )
Machine Base:
Grey Cast Iron FC300Certified
Infeed Table Surface:
chrome(0.3mm thick)
Main Table Surface:
chrome(0.3mm thick)
Sound Enclosure:
Premium sound enclosure
Machine Enclosure:
Light PLUS package
