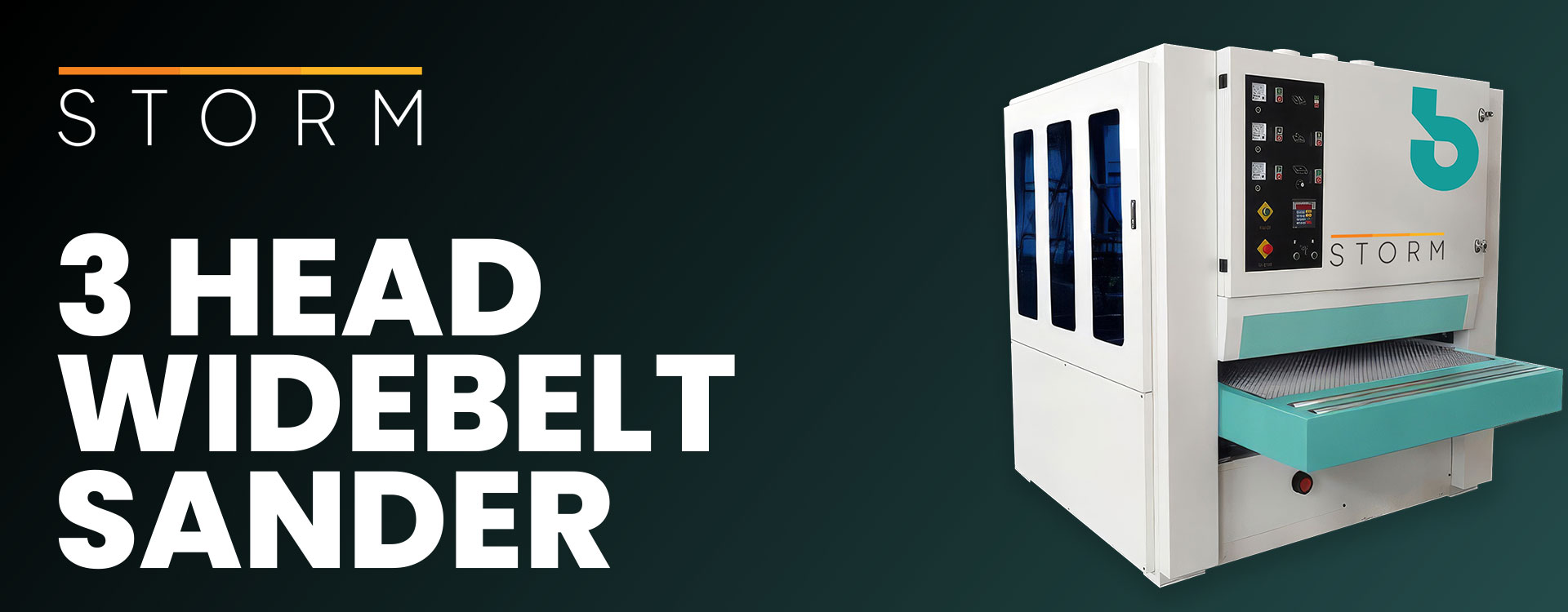

Sanding and Texturizing STORM 3H

Scott_keeling_upscale_upscaled (3) copy
gearbox
bbfb63e6d24b2ba6.jpg_20221026142834_800x800
Brochure Finance Get Quote Layout

Precision Calibration & Finishing

The BOSS Storm widebelt sander is a high-performance sanding solution designed for accurate calibration and fine finishing of solid wood, MDF, plywood, veneered panels, and other wood-based materials. Its proven roller and combination pad configuration delivers consistent thickness, superior surface quality, and efficient stock removal in a single pass. Built for reliability, ease of operation, and low maintenance, the BOSS Wide Belt Sander is a workhorse and provides exceptional sanding performance and long-term value for cabinet, furniture, millwork, and panel manufacturers. The Storm is available in 1, 2 and 3 head configurations and in a variety of widths from 700mm to the all new 2000mm version featured below.

Heavy Duty Frame

Constructed with heavy-duty rectangular steel framing, delivering exceptional rigidity and stability for precise, consistent performance. Main motors are enclosed within the frame for protection, while efficient V-belt and pulley transmission systems provide reliable power transfer to each working unit. Integrated disk brakes on every working unit ensure fast, controlled emergency stops for enhanced operator safety.
STORME FRAME copy

Spring-Loaded Pressure System

Spring-loaded 72 mm (2.8”) pressure rollers positioned before and after each working unit keep material securely against the conveyor, automatically compensating for variations in panel thickness. Mounted on easily adjustable roller racks, the system ensures consistent material hold-down, improved sanding accuracy, and smooth feeding throughout the process.
ddddddd_upscale_upscaled (2) copy

VARIABLE POWER THAT DRIVES PRECISION

The feed system features a heat-treated, precision-ground steel feed table with a machining tolerance of 0.05 mm, adjustable for workpiece thicknesses from 2.5–150 mm (0.1–5.9”). A variable-speed inverter drive (0–19 m/min / 0–62 ft/min) with an integrated bevel gearbox provides smooth, controlled feeding, while the steel roller infeed extension supports larger panels for improved material handling and consistent results.

gearbox

UL and CSA Approved Electrical System

The electrical cabinet. mounted at the front of the machine provides convenient access and simplified maintenance while housing the machine’s essential electrical components, including the power supply, internal transformer, contactors, circuit breakers, and PLC control system. Built according to CE safety standards, the integrated electrical system ensures reliable operation, enhanced protection, and efficient troubleshooting for consistent machine performance.
bbfb63e6d24b2ba6.jpg_20221026142834_800x800

Pneumatic Control System

The pneumatic control system features premium AIRTAC pneumatic components, including an oil/air lubricator (nebulizer), solenoid valve, and air pressure relay, delivering reliable, consistent performance with long-term durability and dependable machine operation.
airtac

High-Performance Material Detection

Equipped with an American-made BANNER sensor, the system delivers high-accuracy material detection with excellent dust penetration, ensuring reliable operation and consistent performance even in high-dust production environments.
Untitled-9 copy

Specifications

Specification
STORM 1000 R-RC
STORM 1300R-R-RC
STORM 2000 R-RA
Max Working Width:
1000mm
1300mm
2000mm
Min Working Width:
40mm
40mm
40mm
Minimum Thickness of Board:
2.5mm
40mm
2.5mm
Max Working Thickness:
150mm
1300mm
150mm
First Roller Diameter:
240mm / 9.5"
240mm / 9.5"
240mm / 9.5"
Second Roller Diameter:
210mm / 8.25"
240mm / 9.5"
210mm / 8.25"
Abrasive Belt Size:
2000mm / 86.6"
18m/s
18m/s
Feeding Speed:
0–20 m/min / 40 ft/min.
0–19 m/min
0–19 m/min
First Belt Speed:
24m/s
24m/s
24m/s
Second Belt Speed:
18m/s
24m/s
24m/s
Total Motor Power:
64 HP
64 kw
64 kw
First Belt Motor:
30 HP
22kw
22kw
Second Belt Motor:
20 HP
22kw
22kw
Third Belt Motor:
—
15kw
15kw
Feeding Motor:
7.5 HP (inverter)
4kw (inverter)
4kw (inverter)
Lifting Motor / Rise & Decline Motor:
1.5 HP
0.5kw
0.5kw
Brush Motor:
0.5 HP
0.25kw
0.25kw
Motors Position:
INSIDE
INSIDE
INSIDE
Working Air Pressure:
0.4–0.8Mpa
0.4–0.8Mpa
0.4–0.8Mpa
Compressed Air Consumption:
1 CBM/min
1 CBM/min
1 CBM/min
Overall Machine Dimensions:
2300*1700*2120mm(90" x 65" x 85")
2700*2000*2120mm
2700*2000*2120mm
Machine Weight:
7,100 Lbs.
4,100 kgs
4,100 kgs

Shop Parts & Supply
for the Magnitude 9018 Moulder

atacama-img

SIA 1919 Sanding Belt 52" x 86.5" (1350mm x 2200mm), A/O
CAD$77.50
ADD TO CART
atacama-img

SIA 1919 Sanding Belt 52" x 86.5" (1350mm x 2200mm), A/O
CAD$77.50
ADD TO CART

Frequently Asked Questions

What is the BOSS Storm 3H Wide Belt Sander used for?

The Storm 3H is designed for accurate calibration, efficient stock removal, and fine finishing of solid wood, MDF, plywood, veneered panels, and other wood-based materials.

The three-head configuration provides greater sanding versatility by combining different roller and pad configurations. This allows the machine to perform efficient material removal followed by progressively finer finishing operations.

The first working unit uses a 240 mm steel sanding roller, the second uses a rubber roller with Shore 70 hardness, and the third combines a 210 mm Shore 55 rubber roller with an adjustable sanding pad.

Is the Storm 3H designed for industrial production?

Yes. The Storm 3H features a heavy-duty steel frame, enclosed main motors, reliable power transmission, built-in safety systems, and industrial electrical and pneumatic components designed for demanding production environments.

What is the advantage of having three working units?

The three-head configuration provides greater sanding versatility by combining different roller and pad configurations. This allows the machine to perform efficient material removal followed by progressively finer finishing operations.

How does the Storm 3H maintain consistent material feeding?

The spring-loaded pressure system keeps material securely against the conveyor while automatically compensating for variations in panel thickness. The variable-speed inverter feed system also provides controlled material movement.
